Single Row NU Cylindrical Roller Bearing: NU212ECP

Single Row NU Cylindrical Roller Bearing: NU212ECP

Single Row NU Cylindrical Roller Bearing
$201.75
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

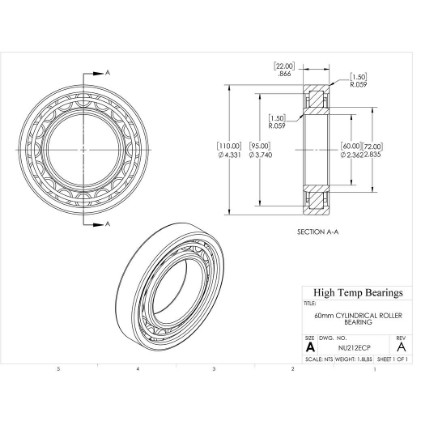

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size60mm
D (mm)110
B (mm)22
C (lb)24279
C0 (lb)22931
Pu (lb)3012
Nr (RPM)6700
Nmax (RPM)7500
Weight(lbs)1.8
Code410411
Bore (mm)60
Da (mm)101
damin (mm)68
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)95
Damin-db (mm)74
damax (mm)70
r1-r2 (mm)1.5
r3-r4 (mm)1.5
ramax (mm)1.5
rbmax (mm)1.5
k0.15
t (mm)95
smax (mm)1.4
B1 (mm)6
B2 (mm)10
F (mm)72
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
