Single Row NU Cylindrical Roller Bearing: NU1010ECP

Single Row NU Cylindrical Roller Bearing: NU1010ECP

Single Row NU Cylindrical Roller Bearing
$318.24
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

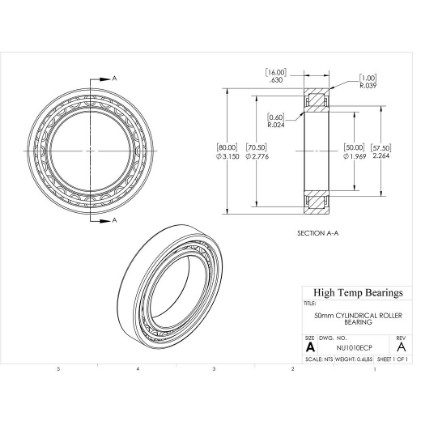

CAD
Specifications:
Attribute nameAttribute value
ConstructionTwo Flanges OD
Shaft Size50mm
D (mm)80
B (mm)16
C (lb)10521
C0 (lb)12589
Pu (lb)1506
Nr (RPM)9500
Nmax (RPM)9500
Weight(lbs)0.6
Code410382
Bore (mm)50
Da (mm)74.6
damin (mm)57
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
T (mm)70.5
Damin-db (mm)59
damax (mm)56
r1-r2 (mm)1
r3-r4 (mm)0.6
ramax (mm)1
rbmax (mm)0.6
k0.1
t (mm)70.5
smax (mm)1
F (mm)57.5
PackageQTY1
UOMEA
Supports larger radial loads than an equal-sized deep groove ball bearing with a high maximum RPM limit. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
