480mm Full Complement Cylindrical Roller Bearing
Print Page
Full Complement Single Row Cylindrical Roller Bearing: NCF2996V
Full Complement Single Row Cylindrical Roller Bearing: NCF2996V
Full Complement Single Row Cylindrical Roller Bearing
$14,775.25
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute name
Attribute value
Code
410585
Shaft Size
480mm
Seals
None
Construction
Full Complement
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA

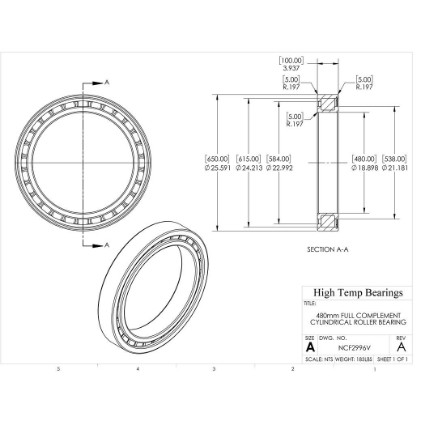

Dimensions
Attribute name
Attribute value
Bore (mm)
480
D (mm)
650
B (mm)
100
d1 (mm)
538
r1-r2 (mm)
5
r3-r4 (mm)
5
D1 (mm)
584
E (mm)
615
Abutment Dimensions
Attribute name
Attribute value
damin (mm)
498
Dbmax (mm)
632
ramax (mm)
4
rbmax (mm)
4
smax (mm)
7
das1 (mm)
527
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
380
Nmax (RPM)
Limiting speed
480
C (lb)
Dynamic load capacity
514815
C0 (lb)
Static load capacity
1101569
Pu (lb)
Fatigue load limit
91048
k
Thrust factor
0.2
Mass
Attribute name
Attribute value
Weight(lbs)
183
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
300
Tmin (F)
-40
