160mm Full Complement Cylindrical Roller Bearing
Print Page

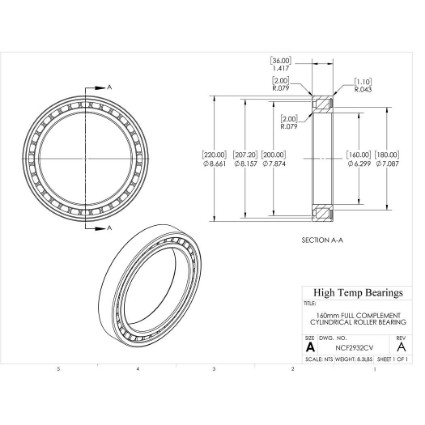

Full Complement Single Row Cylindrical Roller Bearing: NCF2932CV
Full Complement Single Row Cylindrical Roller Bearing: NCF2932CV
Full Complement Single Row Cylindrical Roller Bearing
$1,888.24
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute name
Attribute value
Code
410563
Shaft Size
160mm
Seals
None
Construction
Full Complement
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
160
D (mm)
220
B (mm)
36
d1 (mm)
180
r1-r2 (mm)
2
r3-r4 (mm)
1.1
D1 (mm)
200
E (mm)
207.2
Abutment Dimensions
Attribute name
Attribute value
damin (mm)
169
Dbmax (mm)
211
ramax (mm)
2
rbmax (mm)
1
smax (mm)
2.5
das1 (mm)
177
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
1300
Nmax (RPM)
Limiting speed
1600
C (lb)
Dynamic load capacity
68117
C0 (lb)
Static load capacity
119149
Pu (lb)
Fatigue load limit
13151
k
Thrust factor
0.2
Mass
Attribute name
Attribute value
Weight(lbs)
8.3
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
300
Tmin (F)
-40
