Full Complement Single Row Cylindrical Roller Bearing
$2,823.95

checkbox icon This item typically ship in 1-4 weeks.

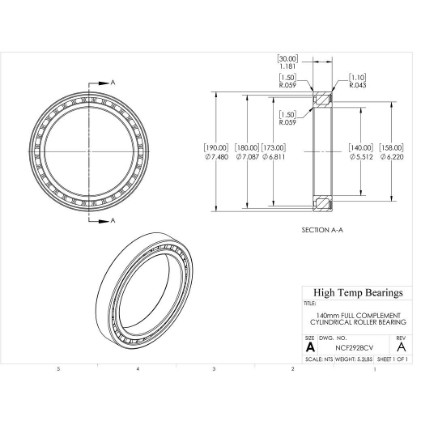

CAD

Specifications:

Description

Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code410561
Shaft Size140mm
SealsNone
ConstructionFull Complement
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

Dimensions

Attribute nameAttribute value
Bore (mm)140
D (mm)190
B (mm)30
d1 (mm)158
r1-r2 (mm)1.5
r3-r4 (mm)1.1
D1 (mm)173
E (mm)180

Abutment Dimensions

Attribute nameAttribute value
damin (mm)148
Dbmax (mm)183
ramax (mm)1.5
rbmax (mm)1
smax (mm)2
das1 (mm)155

Calculation Data

Attribute nameAttribute value
Nr (RPM)Reference speed1500
Nmax (RPM)Limiting speed1900
C (lb)Dynamic load capacity49458
C0 (lb)Static load capacity87676
Pu (lb)Fatigue load limit9667
kThrust factor0.2

Mass

Attribute nameAttribute value
Weight(lbs)5.2

Tolerance Class

Attribute nameAttribute value
ClearanceCN

Safe Loads

Attribute nameAttribute value
Tmax (F)300
Tmin (F)-40
