Full Complement Single Row Cylindrical Roller Bearing: NCF1872V

Full Complement Single Row Cylindrical Roller Bearing: NCF1872V

Full Complement Single Row Cylindrical Roller Bearing
RFQ
EA

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

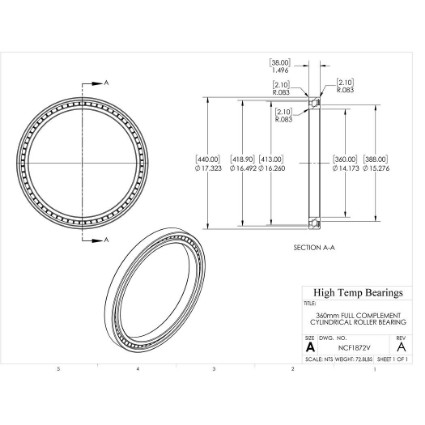

CAD
Specifications:
Attribute nameAttribute value
ConstructionFull Complement
Shaft Size360mm
D (mm)440
B (mm)38
C (lb)90374
C0 (lb)202329
Pu (lb)17198
Nr (RPM)560
Nmax (RPM)700
Weight(lbs)72.8
Code410574
Bore (mm)360
damin (mm)371
d1 (mm)388
SealsNone
ClearanceCN
Tmax (F)300
Tmin (F)-40
Material52100
Dbmax (mm)433
r1-r2 (mm)2.1
r3-r4 (mm)2.1
ramax (mm)2
rbmax (mm)2
k0.1
D1 (mm)413
smax (mm)3
das1 (mm)384
E (mm)418.9
PackageQTY1
UOMEA
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
