600mm Full Complement Cylindrical Roller Bearing
Print Page

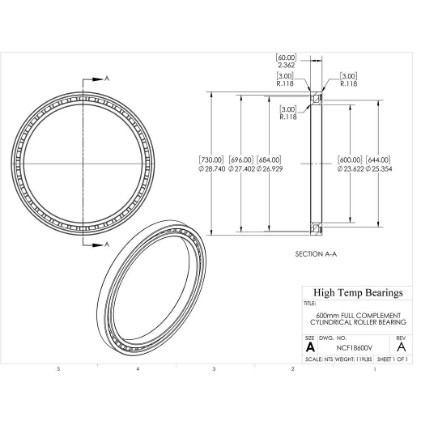

Full Complement Single Row Cylindrical Roller Bearing: NCF18600V
Full Complement Single Row Cylindrical Roller Bearing: NCF18600V
Full Complement Single Row Cylindrical Roller Bearing
$21,140.08
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Specifications:
Description
Supports greater radial loads than an equal-sized caged cylindrical bearing with more tolerance to heat and thermal cycling. RPM limits are reduced compared to caged roller bearings. Cylindrical bearings do not support axial loads but significantly increase L10 life for the same radial load compared to a deep groove bearing. A secondary bearing on the shaft must be used to accept axial force, or the axial forces must be balanced to prevent movement at the cylindrical bearing.
Product Information
Attribute name
Attribute value
Code
410590
Shaft Size
600mm
Seals
None
Construction
Full Complement
Material
52100
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Dimensions
Attribute name
Attribute value
Bore (mm)
600
D (mm)
730
B (mm)
60
d1 (mm)
644
r1-r2 (mm)
3
r3-r4 (mm)
3
D1 (mm)
684
E (mm)
696
Abutment Dimensions
Attribute name
Attribute value
damin (mm)
613
Dbmax (mm)
717
ramax (mm)
2.5
rbmax (mm)
2.5
smax (mm)
7
das1 (mm)
638
Calculation Data
Attribute name
Attribute value
Nr (RPM)
Reference speed
320
Nmax (RPM)
Limiting speed
400
C (lb)
Dynamic load capacity
236051
C0 (lb)
Static load capacity
573266
Pu (lb)
Fatigue load limit
44063
k
Thrust factor
0.1
Mass
Attribute name
Attribute value
Weight(lbs)
119
Tolerance Class
Attribute name
Attribute value
Clearance
CN
Safe Loads
Attribute name
Attribute value
Tmax (F)
300
Tmin (F)
-40
