Picture of Standard Duty, Eccentric Collar, Ball Bearing Insert
Picture of Standard Duty, Eccentric Collar, Ball Bearing Insert
Picture of Standard Duty, Eccentric Collar, Ball Bearing Insert
Picture of Standard Duty, Eccentric Collar, Ball Bearing Insert
Picture of 1-1/4" 206 Mounted Eccentric Bearing Insert

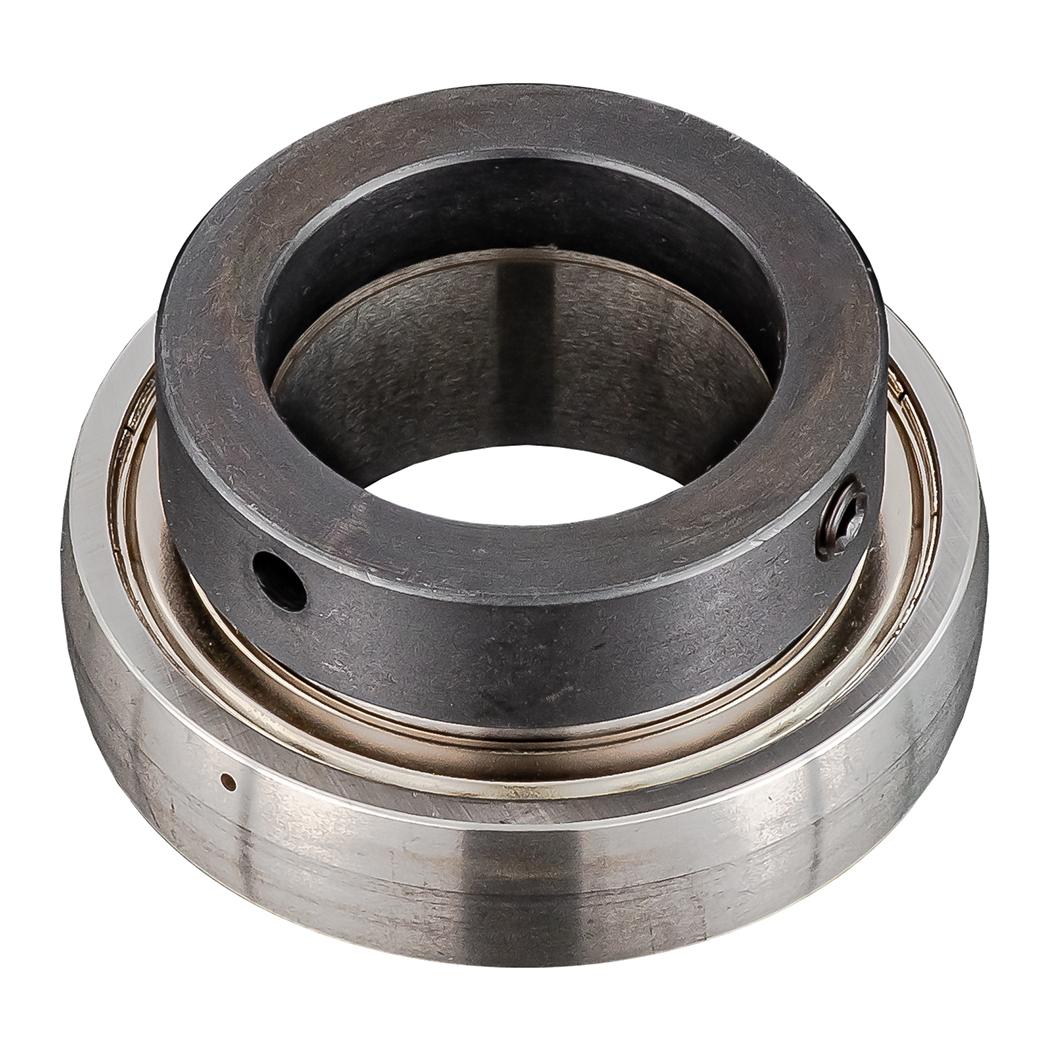

Eccentric Collar Locking Standard Duty Ball Bearing Insert
$13.77
This product has a minimum quantity of 2

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and Installs into standard duty housings.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code100024
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesNA
Shaft Size1-1/4"
CollarEccentric
GreasableRe-lubricationGreasable
ConstructionSelf-Aligning

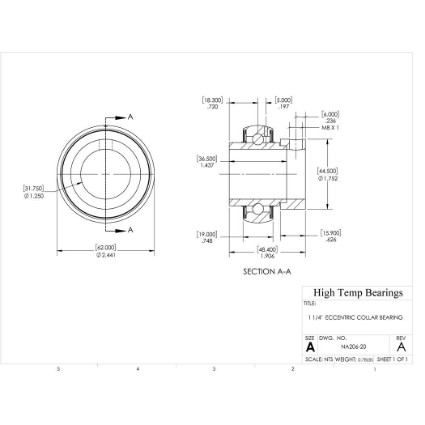

Dimensions

Attribute nameAttribute value
Bore (in)1.25
D (in)2.449
B (in)1.437
B1 (in)1.955
S (in)0.725
C (in)0.748
B2 (in)0.626
h (in)0.1969
d1 (in)1.752
G (in)0.2362
ds5/16-24 UNF

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic Load Capacity4375
C0 (lb)Static Load Capacity2543

Mass

Attribute nameAttribute value
Weight(lbs)0.78

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
