1" Mounted Eccentric Bearing Insert|High Temp Bearings

Picture of Standard Duty, Eccentric Collar, Ball Bearing Insert

Eccentric Collar Locking Standard Duty Ball Bearing Insert

$9.99

This product has a minimum quantity of 4

Qty:

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

Uses a collar with an off-center counter-bored recess groove. When mated with the bearing inner race and twisted, it locks to the shaft without screws and Installs into standard duty housings.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		100650
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		NA
Shaft Size		1"
Collar		Eccentric
Greasable	Re-lubrication	Greasable
Construction		Self-Aligning

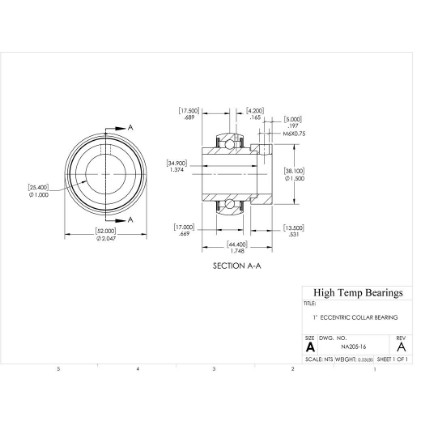

Dimensions

Attribute name		Attribute value
Bore (in)		1
D (in)		2.0472
B (in)		1.374
B1 (in)		1.748
S (in)		0.689
C (in)		0.6693
B2 (in)		0.5315
h (in)		0.1654
d1 (in)		1.5
G (in)		0.1969
ds		1/4-28 UNF

Calculation Data

Attribute name		Attribute value
C (lb)	Dynamic Load Capacity	3150
C0 (lb)	Static Load Capacity	1771

Mass

Attribute name		Attribute value
Weight(lbs)		0.53

Safe Loads

Attribute name		Attribute value
Tmax (F)		248
Tmin (F)		-10
