Cup and cone tapered roller bearing: LM11949910

Cup and cone tapered roller bearing: LM11949910

Cup and cone tapered roller bearing
RFQ

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

CAD
Specifications:
Description
Single row tapered bearings support radial and axial loads or pure thrust loads. Because the inner and outer races are separable, they are typically mounted in pairs in opposing directions to keep the bearings from falling apart. Any misalignment increases bearing noise and reduces bearing service life. Pre-configured matched tapered roller bearings are also available to simplify the design and installation process for many applications.
Product Information
Attribute nameAttribute value
Code410148
Shaft Size3/4"
SealsNone
ConstructionSingle Row
Material52100
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

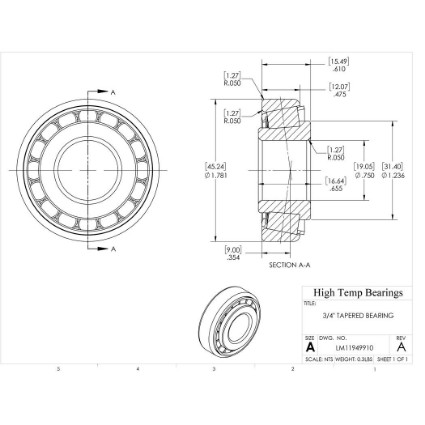

Dimensions
Attribute nameAttribute value
Bore (mm)19.05
D (mm)45.2374
B (mm)15.494
d1 (mm)31.4
T (mm)16.637
P (mm)12.065
r1-r2 (mm)1.27
r3-r4 (mm)1.27
a (mm)9
t (mm)16.637
Abutment Dimensions
Attribute nameAttribute value
Da (mm)26
Damin-db (mm)38
damax (mm)26
dbmin (mm)26
Dbmin (mm)26
Camin (mm)3
Cbmin (mm)3
ramax (mm)1.3
rbmax (mm)1.3
Calculation Data
Attribute nameAttribute value
Nr (RPM)Reference speed13000
Nmax (RPM)Limiting speed16000
C (lb)Dynamic load capacity7599
C0 (lb)Static load capacity6182
Pu (lb)Fatigue load limit652
eLimiting value0.3
YCalculation factor2
Y0Calculation factor1.1
Mass
Attribute nameAttribute value
Weight(lbs)0.3
Tolerance Class
Attribute nameAttribute value
ClearanceCN
Safe Loads
Attribute nameAttribute value
Tmax (F)250
Tmin (F)-40
