High Temperature Piloted Flange: HUCFCF211KX

High Temperature Piloted Flange: HUCFCF211KX

High Temperature Piloted Flange Mounted Ball Bearing
$590.99
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD

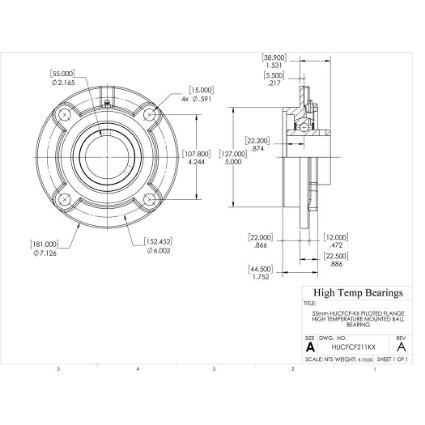

Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
Shaft Size55mm
H (in)7.126
L (in)6
J (in)0.8661
A2 (in)0.8661
A1 (in)0.4724
H2 (in)1.5315
A (in)5
N (in)0.5945
E (in)2.189
S (in)0.874
B (in)1.315
Bolt1/2
Bearing InsertHUC211KX
HousingFCF211
Weight(lbs)11
Code102932
PackageQTY1
UOMEA
SeriesHU-KX
Bore (in)2.1654
H1 (in)0.2165
SealingSilicone
End CapNone
Can handle light to moderate loads, moderate speed, and vibration at high temperatures. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
