High Temperature Piloted Flange: HUCFCF210-31KX

High Temperature Piloted Flange: HUCFCF210-31KX

High Temperature Piloted Flange Mounted Ball Bearing
$417.15
EA

checkbox icon This item typically ship in 1-4 weeks.

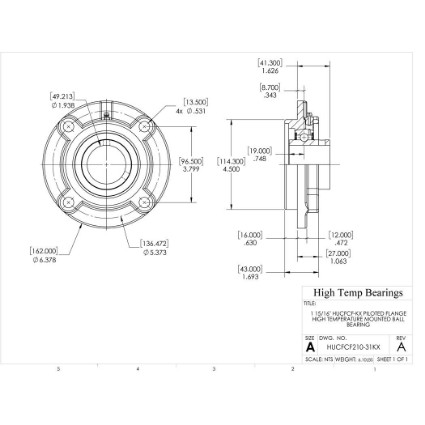

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
Shaft Size1-15/16"
H (in)6.378
L (in)5.374
J (in)1.63
A2 (in)0.6299
A1 (in)0.4724
H2 (in)1.626
A (in)4.5
N (in)0.5315
E (in)2.315
S (in)0.748
B (in)1.2835
Bolt7/16
Bearing InsertHUC210-31KX
HousingFCF210
Weight(lbs)7
Code102928
PackageQTY1
UOMEA
SeriesHU-KX
Bore (in)1.9375
H1 (in)0.3543
Can handle light to moderate loads, moderate speed, and vibration at high temperatures. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
