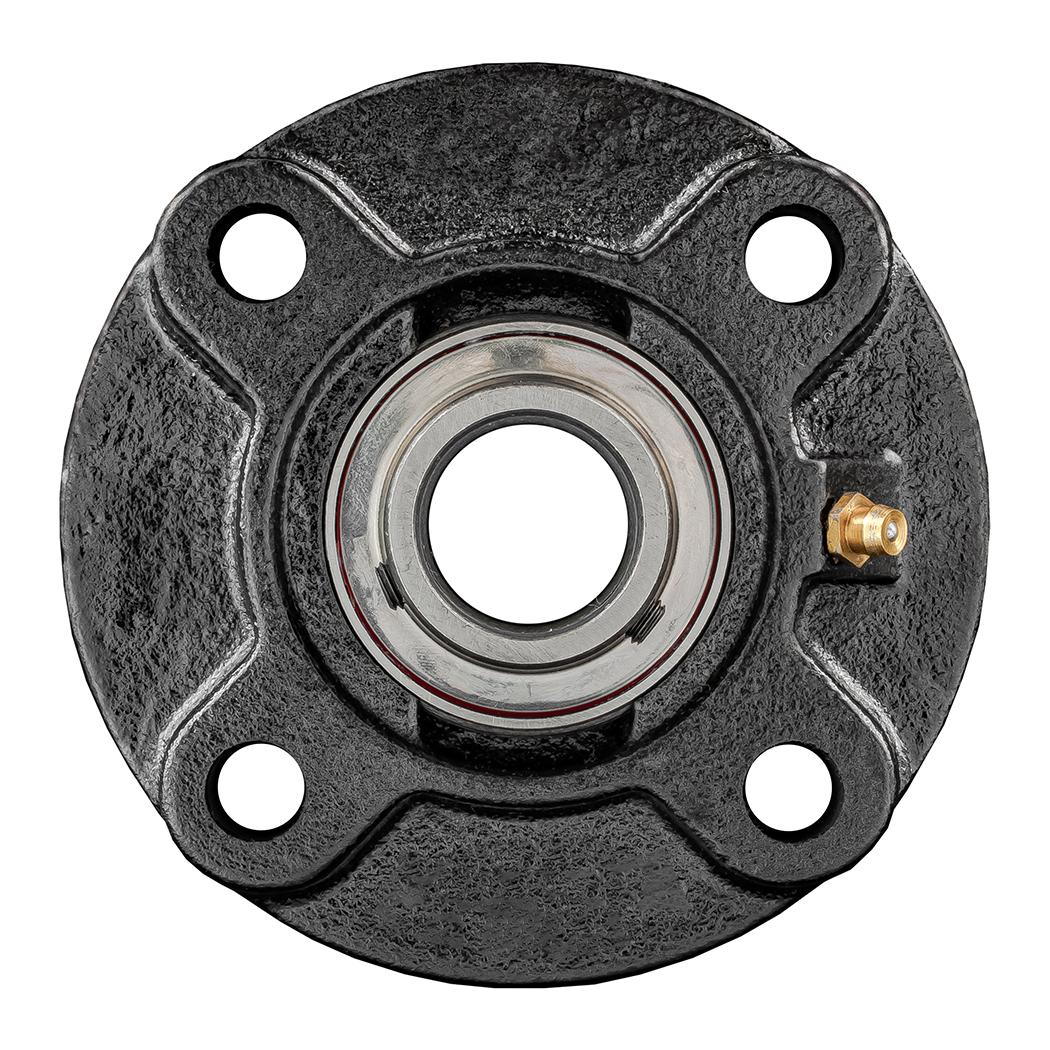

High Temperature Piloted Flange: HUCFCF208-24KX

High Temperature Piloted Flange: HUCFCF208-24KX

HU-KX, Piloted Flange
$308.66
CAD
DATA SHEET
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
Bore (in)1.5
H (in)5.2362
L (in)4.374
J (in)1.236
A2 (in)0.4724
A1 (in)0.4724
H2 (in)1.563
A (in)3.626
N (in)0.4685
E (in)1.937
S (in)0.748
B (in)1.189
Bolt3/8
Bearing InsertHUC208-24KX
HousingFCF208
Weight(lbs)4.6
Code102923
PackageQTY1
UOMEA
SeriesHU-KX
H1 (in)0.374
