High Temperature Piloted Flange: HUCFCF206-19KX

High Temperature Piloted Flange: HUCFCF206-19KX

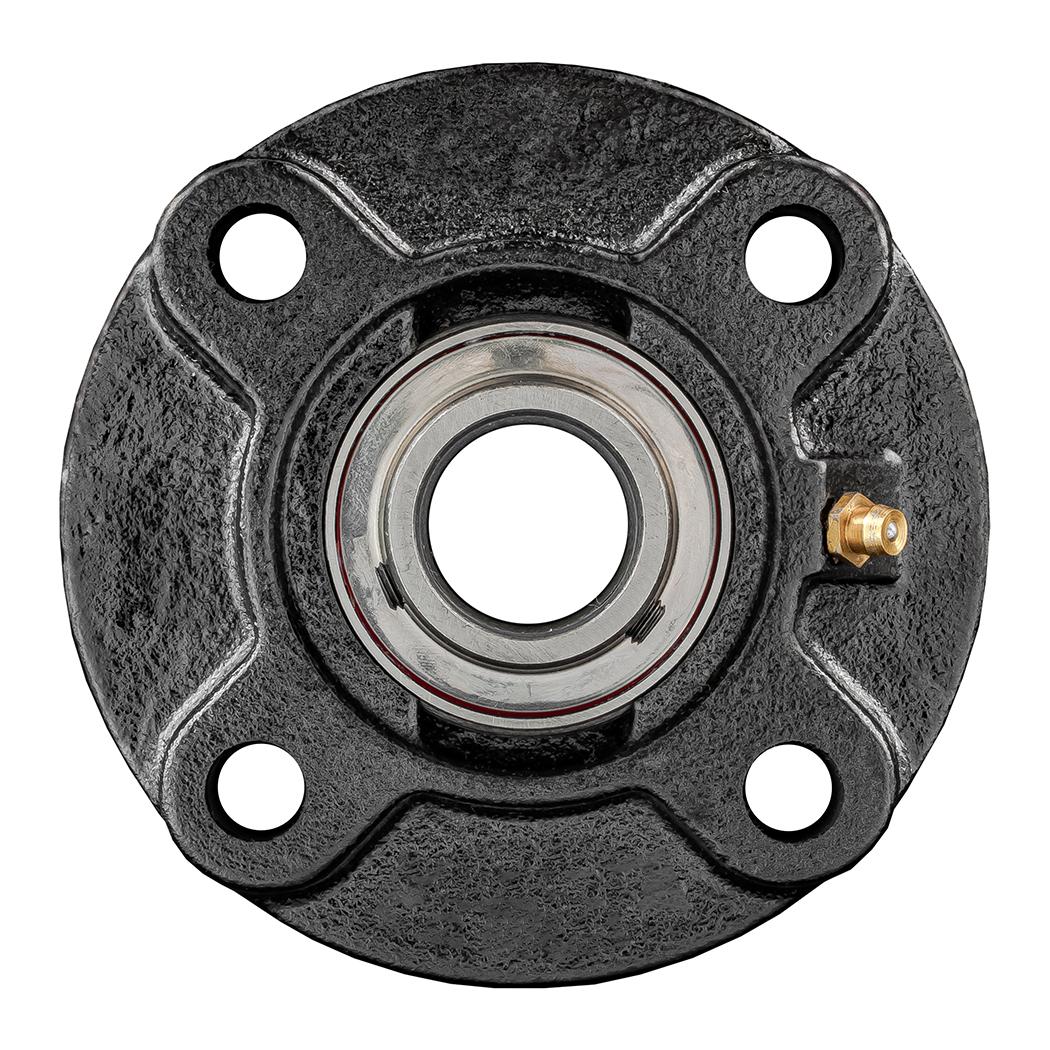

High Temperature Piloted Flange Mounted Ball Bearing
$287.46
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
Shaft Size1-3/16"

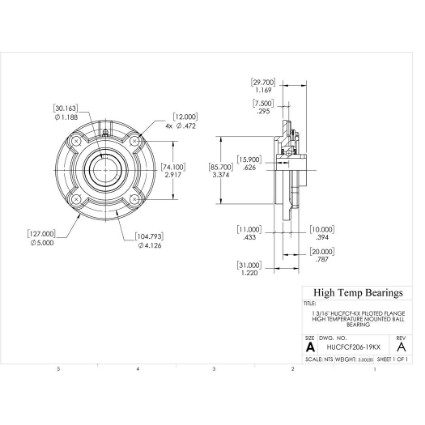

H (in)5
L (in)4.126
J (in)0.7874
A2 (in)0.4331
A1 (in)0.3937
H2 (in)1.1732
A (in)3.374
N (in)0.4685
E (in)1.5
S (in)0.626
B (in)0.874
Bolt3/8
Bearing InsertHUC206-19KX
HousingFCF206
Weight(lbs)3.9
Code102916
PackageQTY1
UOMEA
SeriesHU-KX
Bore (in)1.1875
H1 (in)0.2953
SealingSilicone
End CapNone
Can handle light to moderate loads, moderate speed, and vibration at high temperatures. All bearings are equipped with close tolerance stainless steel metal shields, an internal silicone contact seal (B-type), and factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. KX series ball bearings are designed to significantly outlast all other equivalently sized ball bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
