NT600 Steel Backed Composite Sleeve Bearing: HR316-NT6-400

NT600 Steel Backed Composite Sleeve Bearing: HR316-NT6-400

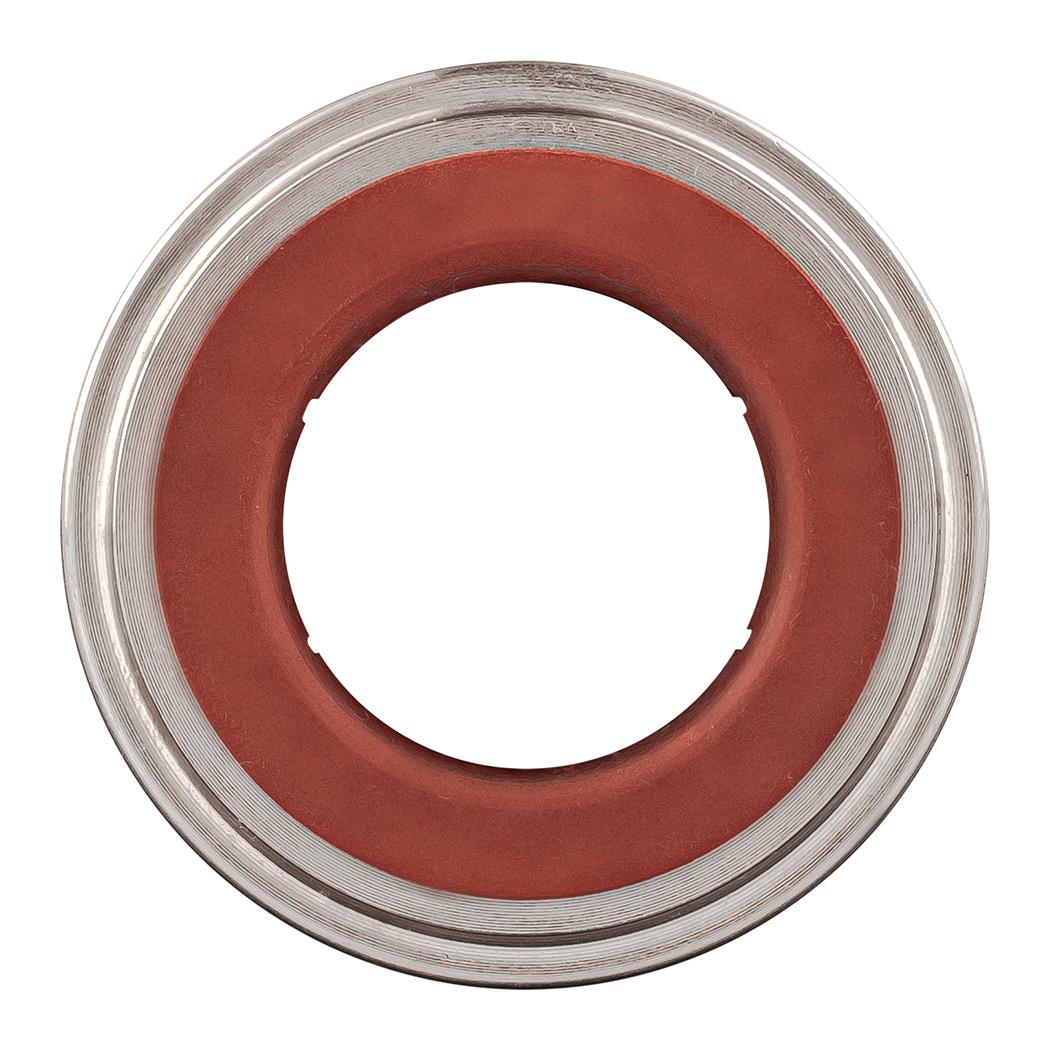

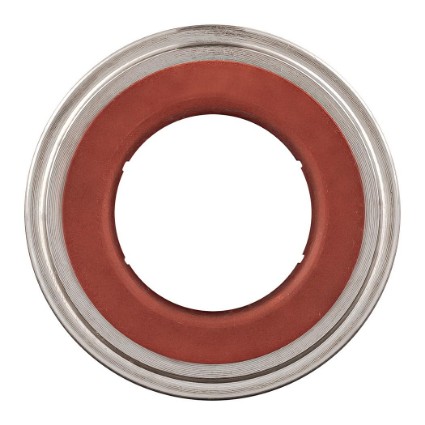

Steel Backed 500 °F Mounted Polymer Sleeve Bearing Insert
$1,011.54
Specifications:
Attribute nameAttribute value
Tmax (F)500
Bore (in)4.03
A (in)3.175
C (in)1.732
L (in)4.678
S (in)6.688
Static (lb)6366
10 RPM (lb)6366
50 RPM (lb)6366
100 RPM (lb)1273
200 RPM (lb)1273
Max Thrust Load (lb)637
Weight(lbs)13.47
Code470124
PackageQTY1
UOMEA
SeriesHR
Tmin (F)-400
ShaftDia (in)4
MaterialNT600
Max Cap Load (lb)5100
Tservice (F)500
Shaft size4"
