1-15/16" 500 °F Mounted PTFE Bearing Insert|High Temp Bearings

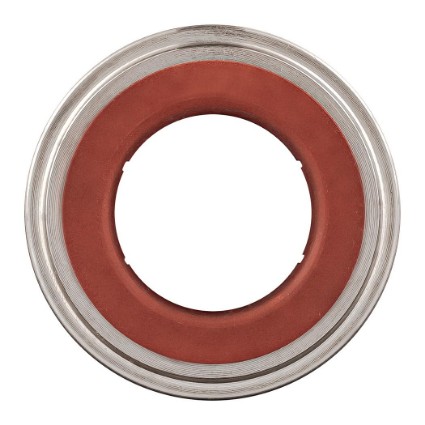

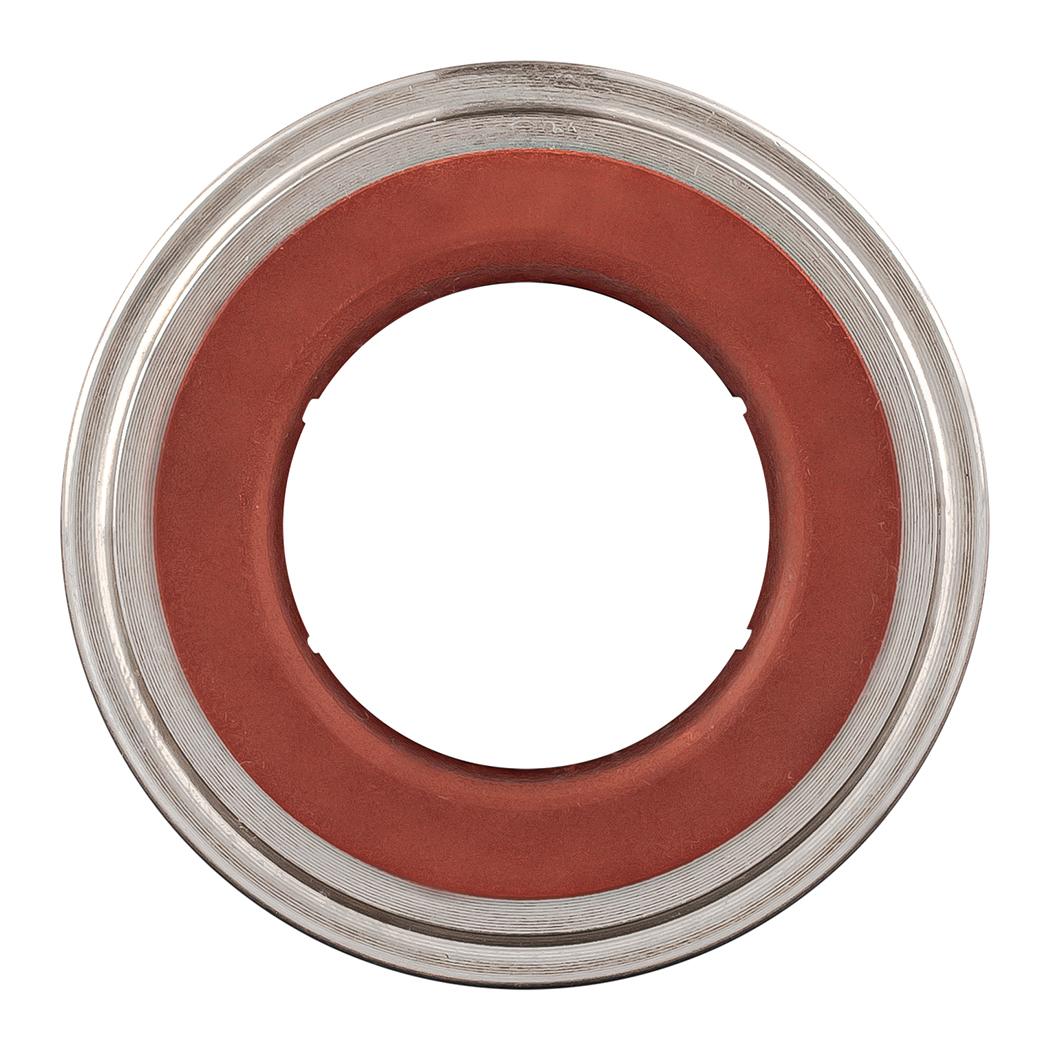

Picture of NT600 Steel Backed Composite Sleeve Bearing

Steel Backed 500 °F Mounted Polymer Sleeve Bearing Insert

$436.27

Qty:

checkbox icon This item typically ship in 1-4 weeks.

Specifications:

Description

PTFE composite sleeve in a nickel-plated carbon steel backing ring. All mounted inserts will install into their respective conventional UC series housing. All of our mounted sleeve bearing inserts use our proven design that maintains the self-aligning capability of the bearing by preventing oxidation of the spherical surfaces.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		470083
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HR
Shaft Size		1-15/16"
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		1.958
ShaftDia (in)		1.938
A (in)		1.459
C (in)		0.94
L (in)		2.678
S (in)		3.538

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	1420
10 RPM (lb)	Load capacity at 10 RPM	1420
50 RPM (lb)	Load capacity at 50 RPM	1420
100 RPM (lb)	Load capacity at 100 RPM	1420
200 RPM (lb)	Load capacity at 200 RPM	284
Max Cap Load (lb)		1420
Max Thrust Load (lb)		142

Mass

Attribute name		Attribute value
Weight(lbs)		1.65

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500
