4-1/2" Split MM 500 °F PTFE Bearing Insert|High Temp Bearings

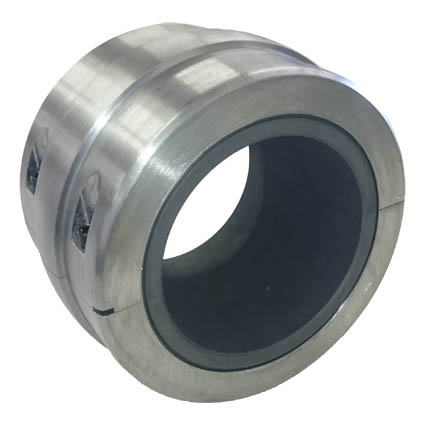

Picture of Split Dodge MM Composite Sleeve Bearing Interchange

Split MM Interchange 500 °F Polymer Sleeve Bearing Insert

$4,927.40

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:

Description

Split PTFE composite sleeve placed in a split nickel-plated carbon steel backing ring. Replacement for a standard dodge MM series mounted carbon-graphite sleeve bearing insert that enhances the functionality of the standard hardware by allowing for easy installation without decoupling hardware and uses our NT600 material for enhanced wear life and seizure prevention in corrosive environments.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		500280
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HMS
Shaft Size		4-1/2"
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		4.535
ShaftDia (in)		4.5
A (in)		4.5
C (in)		1.25
L (in)		6.938
S (in)		7.37

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	7161
10 RPM (lb)	Load capacity at 10 RPM	7161
50 RPM (lb)	Load capacity at 50 RPM	7161
100 RPM (lb)	Load capacity at 100 RPM	1432
200 RPM (lb)	Load capacity at 200 RPM	1432
Max Cap Load (lb)		6900
Max Thrust Load (lb)		716

Mass

Attribute name		Attribute value
Weight(lbs)		19.7

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500
