Split Dodge MM1 Carbon Sleeve Bearing Interchange: HMS407-HT1-444

Split Dodge MM1 Carbon Sleeve Bearing Interchange: HMS407-HT1-444

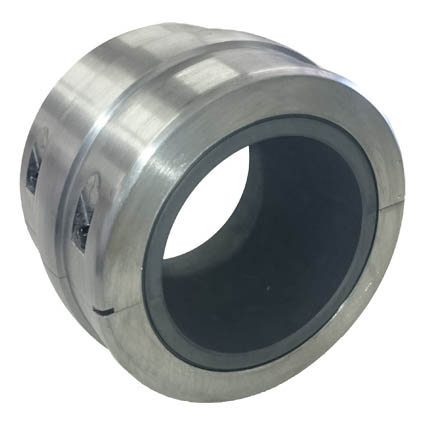

Split MM Interchange 1000 °F Carbon Sleeve Bearing Insert
$4,209.00
MANUAL
Specifications:
Attribute nameAttribute value
Tmax (F)1000
Bore (in)4.449
A (in)4.5
C (in)1.25
L (in)6.938
S (in)7.37
Static (lb)21000
10 RPM (lb)11800
50 RPM (lb)4590
100 RPM (lb)2290
200 RPM (lb)1150
Max Thrust Load (lb)1180
Weight(lbs)20
Code500285
PackageQTY1
UOMEA
SeriesHMS
Tmin (F)-200
ShaftDia (in)4.438
MaterialHT1000
Max Cap Load (lb)5100
Tservice (F)1000
Shaft size4 7/16"
