4" Split MM 500 °F PTFE Bearing Insert|High Temp Bearings

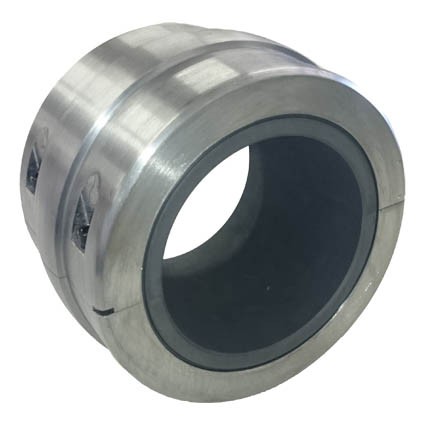

Picture of Split Dodge MM Composite Sleeve Bearing Interchange

Split MM Interchange 500 °F Polymer Sleeve Bearing Insert

$4,719.20

Qty:

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:

Description

Split PTFE composite sleeve placed in a split nickel-plated carbon steel backing ring. Replacement for a standard dodge MM series mounted carbon-graphite sleeve bearing insert that enhances the functionality of the standard hardware by allowing for easy installation without decoupling hardware and uses our NT600 material for enhanced wear life and seizure prevention in corrosive environments.

Free ground shipping within the contiguous United States

Attribute name		Attribute value
Daily Shipping Deal		FREE GROUND SHIPPING

Product Information

Attribute name		Attribute value
Code		500286
PackageQTY	Package Quantity	1
UOM	Unit of Measure	EA
Series		HMS
Shaft Size		4"
Material		NT600

Dimensions

Attribute name		Attribute value
Bore (in)		4.03
ShaftDia (in)		4
A (in)		4
C (in)		1.125
L (in)		5.625
S (in)		6.057

Calculation Data

Attribute name		Attribute value
Static (lb)	Load capacity intermittent use	6366
10 RPM (lb)	Load capacity at 10 RPM	6366
50 RPM (lb)	Load capacity at 50 RPM	6366
100 RPM (lb)	Load capacity at 100 RPM	1273
200 RPM (lb)	Load capacity at 200 RPM	1273
Max Cap Load (lb)		5100
Max Thrust Load (lb)		637

Mass

Attribute name		Attribute value
Weight(lbs)		9.8

Safe Loads

Attribute name		Attribute value
Tmax (F)		500
Tmin (F)		-400
Tservice (F)	Max use temperature in air	500
