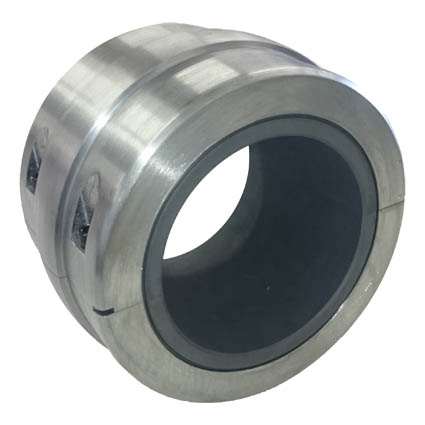

Split Dodge MM1 Carbon Sleeve Bearing Interchange: HMS307-HT1-344

Split Dodge MM1 Carbon Sleeve Bearing Interchange: HMS307-HT1-344

Split MM Interchange 1000 °F Carbon Sleeve Bearing Insert
$3,782.00
MANUAL
Specifications:
Attribute nameAttribute value
Tmax (F)1000
Bore (in)3.447
A (in)3.5
C (in)0.875
L (in)4.875
S (in)5.182
Static (lb)12000
10 RPM (lb)5970
50 RPM (lb)3120
100 RPM (lb)1560
200 RPM (lb)780
Max Thrust Load (lb)597
Weight(lbs)6.4
Code500298
PackageQTY1
UOMEA
SeriesHMS
Tmin (F)-200
ShaftDia (in)3.438
MaterialHT1000
Max Cap Load (lb)4151
Tservice (F)1000
Shaft size3 7/16"
