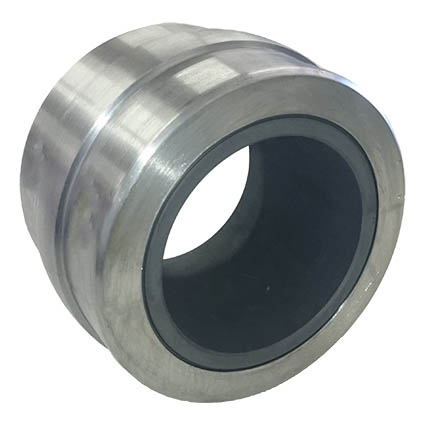

MM Interchange 1000 °F Carbon Sleeve Bearing Insert
$3,678.32

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:

Description

Thermally fit carbon-graphite sleeve placed in a nickel-plated carbon steel backing ring. That is a high-quality replacement for a standard dodge MM series mounted carbon-graphite sleeve bearing insert.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code370279
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesHM
Shaft Size3-15/16"
MaterialHT750

Dimensions

Attribute nameAttribute value
Bore (in)3.948
ShaftDia (in)3.938
A (in)4
C (in)1.125
L (in)5.625
S (in)6.057

Calculation Data

Attribute nameAttribute value
Static (lb)Load capacity intermittent use21000
10 RPM (lb)Load capacity at 10 RPM11800
50 RPM (lb)Load capacity at 50 RPM4590
100 RPM (lb)Load capacity at 100 RPM2290
200 RPM (lb)Load capacity at 200 RPM1150
Max Cap Load (lb)5100
Max Thrust Load (lb)1180

Mass

Attribute nameAttribute value
Weight(lbs)10

Safe Loads

Attribute nameAttribute value
Tmax (F)750
Tmin (F)-40
Tservice (F)Max use temperature in air750
