Picture of Dodge MM1 Carbon Sleeve Bearing Interchange
Picture of Dodge MM1 Carbon Sleeve Bearing Interchange
Picture of Dodge MM1 Carbon Sleeve Bearing Interchange

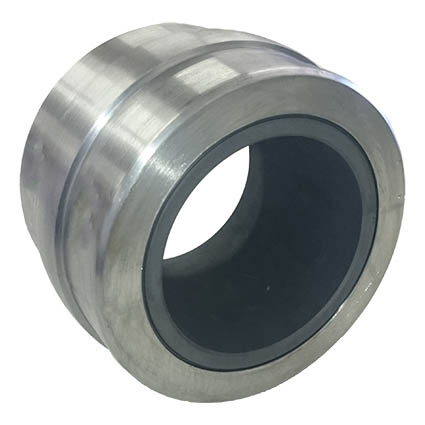

MM Interchange 1000 °F Carbon Sleeve Bearing Insert
$3,328.00

checkbox icon This item typically ship in 1-4 weeks.

checkbox icon Item listed as "Request For Quote" (RFQ) usually ship in 3-6 week

Specifications:

Description

Thermally fit carbon-graphite sleeve placed in a nickel-plated carbon steel backing ring. That is a high-quality replacement for a standard dodge MM series mounted carbon-graphite sleeve bearing insert.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code370445
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesHM
Shaft Size3-1/2"
MaterialHT750

Dimensions

Attribute nameAttribute value
Bore (in)3.51
ShaftDia (in)3.5
A (in)3.5
C (in)0.875
L (in)4.875
S (in)5.182

Calculation Data

Attribute nameAttribute value
Static (lb)Load capacity intermittent use17000
10 RPM (lb)Load capacity at 10 RPM9100
50 RPM (lb)Load capacity at 50 RPM4000
100 RPM (lb)Load capacity at 100 RPM2000
200 RPM (lb)Load capacity at 200 RPM1000
Max Cap Load (lb)4151
Max Thrust Load (lb)910

Mass

Attribute nameAttribute value
Weight(lbs)6.2

Safe Loads

Attribute nameAttribute value
Tmax (F)750
Tmin (F)-40
Tservice (F)Max use temperature in air750
