Concentric Locking Tap Base Mounted Bearing
$48.69

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

This bearing has a concentric locking grip that uniformly distributes clamping pressure around the shaft for a secure hold. It provides better control for high speed and vibration than alternative mounting ball bearing configurations without marring the shaft. The outer race features an anti-rotation pin to minimize insert movement due to vibration and installs into a standard cast iron housing

2D and 3D files are available for download For drawings and 3D models, click on a part number.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code110339
Shaft Size1-1/4"
SeriesHLPA
ConstructionTap Base
SealingStandard
End CapNone
CollarH-Lock
GreasableRe-lubricationGreasable
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

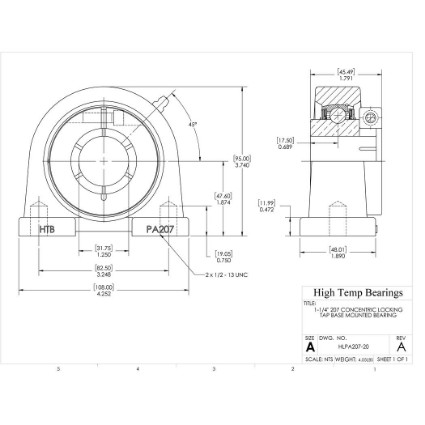

Dimensions

Attribute nameAttribute value
Bore (in)1.25
H (in)1.874
L (in)4.252
J (in)3.248
H1 (in)0.472
H2 (in)3.74
A (in)1.89
S (in)0.689
B (in)1.791
F (in)0.75

Mass

Attribute nameAttribute value
Weight(lbs)4.05

Mounting Information

Attribute nameAttribute value
Bolt1/2 - 13 UNC

Associated Products

Attribute nameAttribute value
Bearing InsertHL207-20
HousingPA207
