Concentric Locking Standard Duty Ball Bearing Insert
$27.95

checkbox icon Delivery in 1-3 days with 2-day shipping.

CAD

Specifications:

Description

This bearing has a concentric locking grip that uniformly distributes clamping pressure around the shaft for a secure hold. It provides better control for high speed and vibration than alternative mounting ball bearing configurations without marring the shaft. The outer race features an anti-rotation pin to minimize insert movement due to vibration and installs into a standard cast iron housing

2D and 3D files are available for download For drawings and 3D models, click on a part number.

Free Ground ShippingFree ground shipping within the contiguous United States

Attribute nameAttribute value
Daily Shipping DealFREE GROUND SHIPPING

Product Information

Attribute nameAttribute value
Code111039
Shaft Size1-3/8"
SeriesHL
CollarH-Lock
GreasableRe-lubricationGreasable
ConstructionSelf-Aligning
PackageQTYPackage Quantity1
UOMUnit of MeasureEA

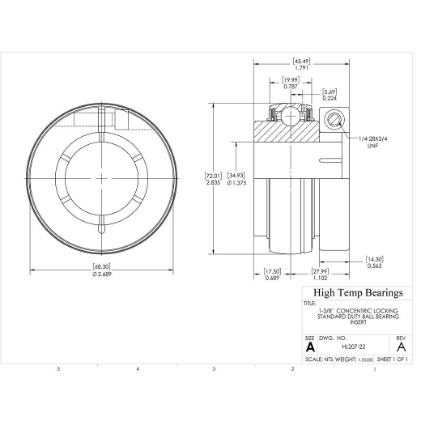

Dimensions

Attribute nameAttribute value
Bore (in)1.375
D (in)2.835
B1 (in)1.791
S (in)0.689
C (in)0.787
B2 (in)0.563
h (in)0.224
d1 (in)2.689
S1(in)1.102
ds1/4-28x3/4 UNF

Calculation Data

Attribute nameAttribute value
C (lb)Dynamic Load Capacity5770
C0 (lb)Static Load Capacity3440

Mass

Attribute nameAttribute value
Weight(lbs)1.55

Safe Loads

Attribute nameAttribute value
Tmax (F)248
Tmin (F)-10
