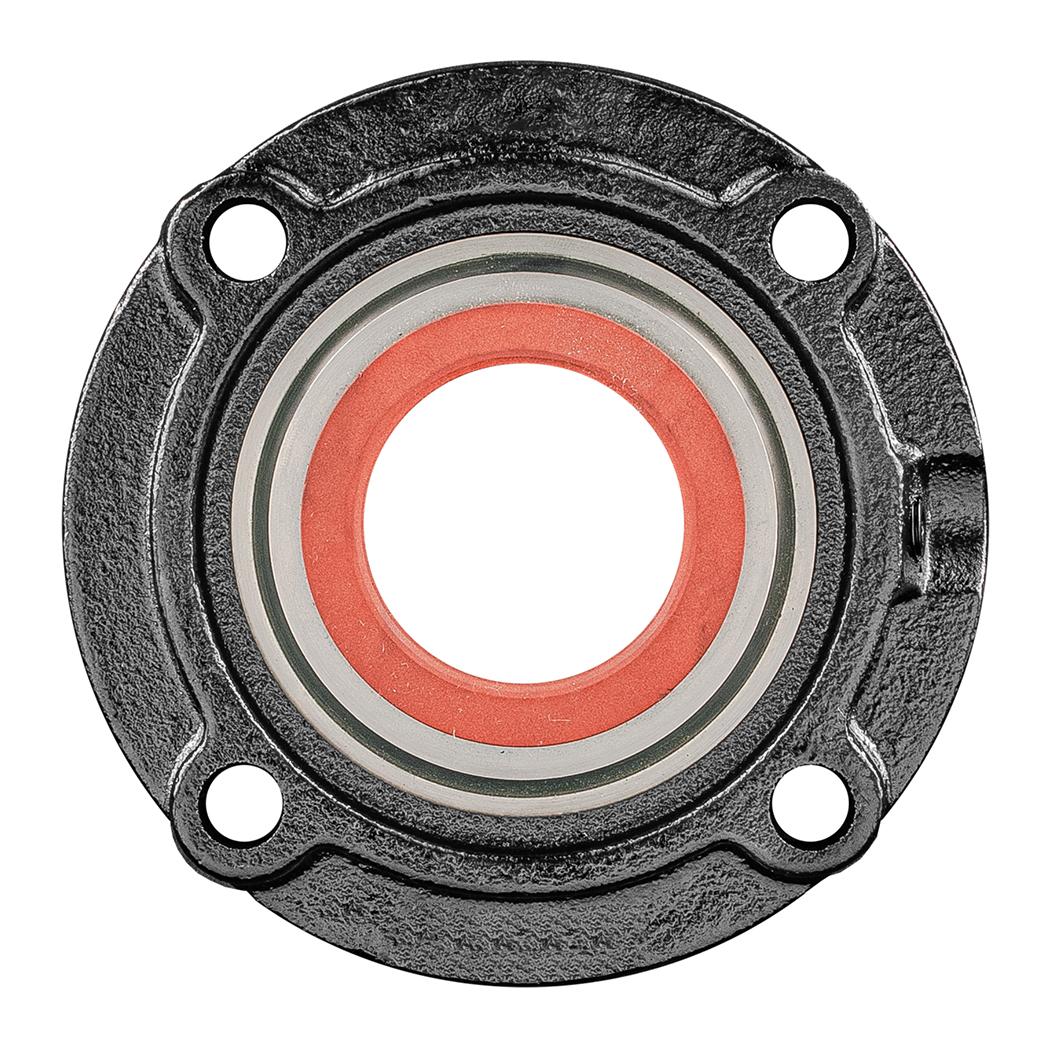

Piloted Flange NT600 Composite Sleeve Bearing: FCF207NT600-35

Piloted Flange NT600 Composite Sleeve Bearing: FCF207NT600-35

Piloted, NT600, Solid
$326.80
MANUAL
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
Tmax (F)500
Bore (in)1.398
A (in)1.292
B (in)5.236
C (in)1.396
D (in)3.93
F (in)0.472
H (in)0.472
J (in)0.58
L (in)2.178
M (in)3.626
S1 (in)0.472
S2 (in)4.374
Bearing InsertHR207-NT6-35
Static (lb)893
Weight(lbs)3.7
Code104320
PackageQTY1
UOMEA
SeriesHR
ShaftDia (in)1.378
Tmin (F)-400
MaterialNT600
10 RPM (lb)893
50 RPM (lb)893
100 RPM (lb)893
200 RPM (lb)893
Max Cap Load (lb)893
Max Thrust Load (lb)89
Tservice (F)500
Shaft size35mm
