Type-E Mounted Spherical Roller Bearings
>

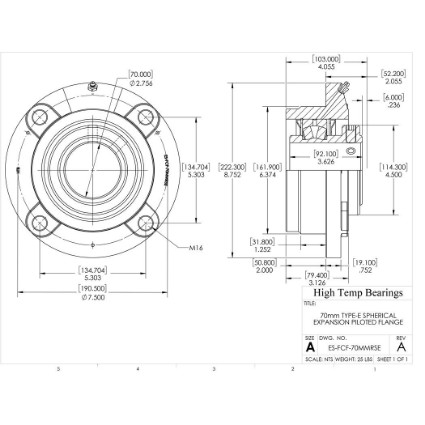

70mm Type E Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E Piloted Flange: ES-FCF-70MMRSE
Heavy Duty Type E Piloted Flange: ES-FCF-70MMRSE
Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,014.38
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
70mm
Dismount Thread
7/16-14 UNC
A (mm)
222.3
B (mm)
79.4
C (mm)
19.1
D (mm)
114.3
Bolt
M16
G (mm)
52.2
H (mm)
31.8
K (mm)
50.8
L (mm)
92.1
M (mm)
134.7
Z (mm)
161.9
Co (lb)
52830
Weight(lbs)
25
Code
105218
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
70
E (mm)
190.5
T (mm)
103
X (mm)
6
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
