65mm Type E Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E Piloted Flange: ES-FCF-65MMRSE
Heavy Duty Type E Piloted Flange: ES-FCF-65MMRSE
Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$439.12
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS1
Manual
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105212
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
Type-E Spherical
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
65mm

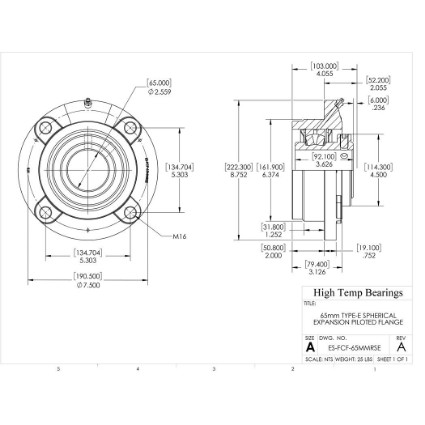

Dimensions
Attribute name
Attribute value
Bore (mm)
65
A (mm)
222.3
B (mm)
79.4
C (mm)
19.1
D (mm)
114.3
E (mm)
190.5
G (mm)
52.2
H (mm)
31.8
K (mm)
50.8
L (mm)
92.1
M (mm)
134.7
T (mm)
103
X (mm)
6
Z (mm)
161.9
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
41590
Co (lb)
Static load capacity
52830
Mass
Attribute name
Attribute value
Weight(lbs)
25
Mounting Information
Attribute name
Attribute value
Dismount Thread
7/16-14 UNC
Bolt
Recommended Foot Bolt
M16
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1500
Max RPM-PTFE Seal
Limiting speed
2150
Max RPM-Metal Labyrinth Seal
Limiting speed
2150
