Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>

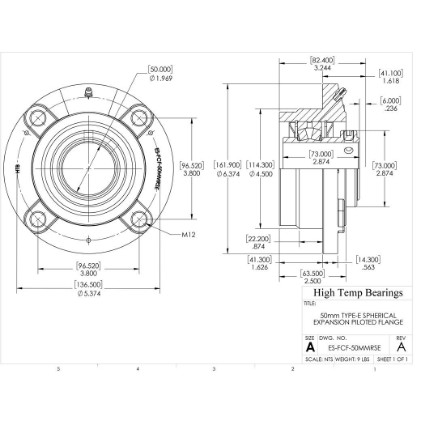

50mm Type E Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E Piloted Flange: ES-FCF-50MMRSE
Heavy Duty Type E Piloted Flange: ES-FCF-50MMRSE
Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$527.40
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
50mm
Dismount Thread
5/16-18 UNC
A (mm)
161.9
B (mm)
63.5
C (mm)
14.3
D (mm)
73
Bolt
M12
G (mm)
41.1
H (mm)
22.2
K (mm)
41.3
L (mm)
73
M (mm)
96.5
Z (mm)
114.3
Co (lb)
24730
Weight(lbs)
9
Code
105198
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
50
E (mm)
136.5
T (mm)
82.4
X (mm)
6
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
