Heavy Duty Type E Piloted Flange: ES-FCF-350RSE

Heavy Duty Type E Piloted Flange: ES-FCF-350RSE

Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,416.40
EA

checkbox icon This item typically ship in 1-4 weeks.

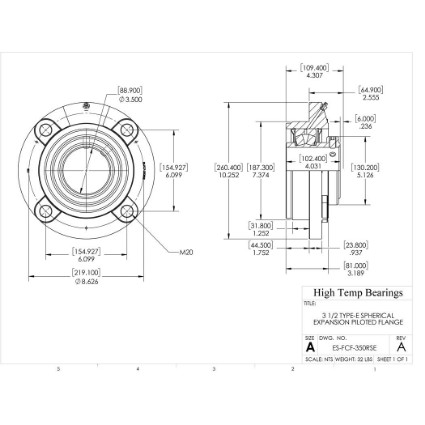

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size3-1/2"
Dismount Thread7/16-14 UNC
A (mm)260.4
B (mm)81
C (mm)23.8
D (mm)130.2
BoltM20
G (mm)64.9
H (mm)31.8
K (mm)44.5
L (mm)102.4
M (mm)154.9
Z (mm)187.3
Co (lb)83180
Weight(lbs)32
Code105232
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)88.9
E (mm)219.1
T (mm)109.4
X (mm)6
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
