Home
>
Heavy Duty Mounted Bearings
>
High Temperature Type-E Mounted Spherical Roller Bearings
>

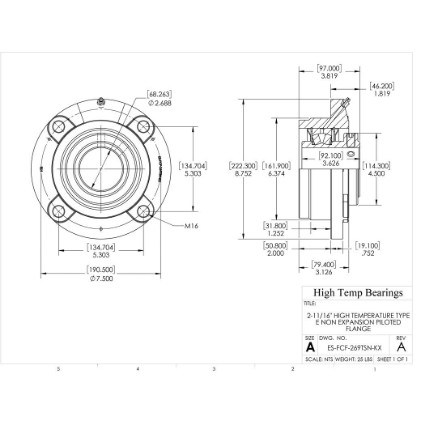

2-11/16" High Temperature Type E Non Expansion Piloted Flange Heavy Duty Bearing
Print Page
High Temperature Type E Piloted Flange: ES-FCF-269TSN-KX
High Temperature Type E Piloted Flange: ES-FCF-269TSN-KX

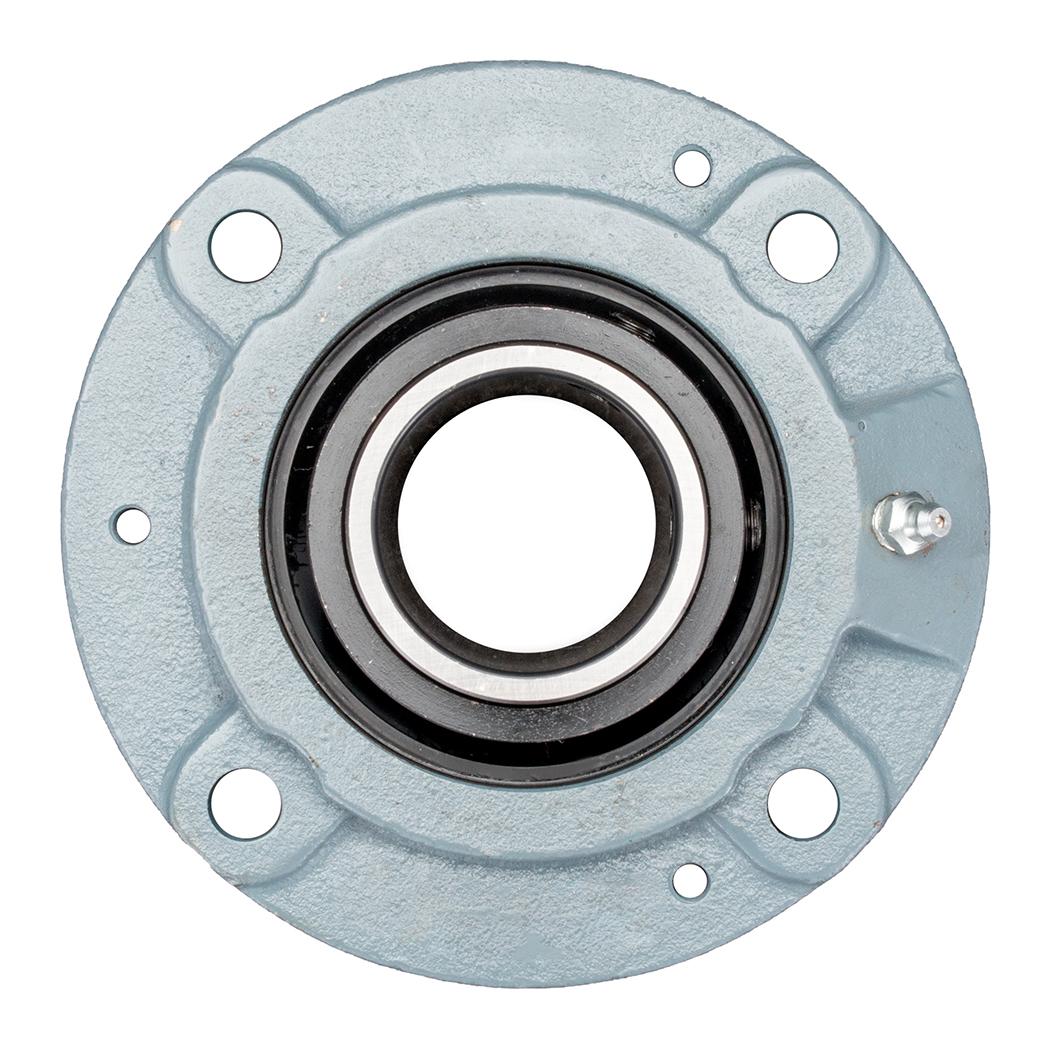

High Temperature Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,084.70
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
2-11/16"
Dismount Thread
7/16-14 UNC
A (mm)
222.3
B (mm)
79.4
C (mm)
19.1
D (mm)
114.3
Bolt
M16
G (mm)
52.2
H (mm)
31.8
K (mm)
50.8
L (mm)
92.1
M (mm)
134.7
Z (mm)
161.9
Co (lb)
52830
Weight(lbs)
25
Code
105755
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
68.2625
E (mm)
190.5
T (mm)
103
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
