Heavy Duty Type E Piloted Flange: ES-FCF-244RSN

Heavy Duty Type E Piloted Flange: ES-FCF-244RSN

Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$434.95

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealBIGBEARING
Product Information
Attribute nameAttribute value
Code105209
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size2-7/16"

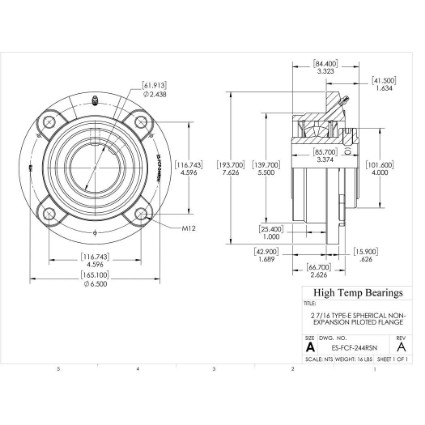

Dimensions
Attribute nameAttribute value
Bore (mm)61.9125
A (mm)193.7
B (mm)66.7
C (mm)15.9
D (mm)101.6
E (mm)165.1
G (mm)47.5
H (mm)25.4
K (mm)42.9
L (mm)85.7
M (mm)116.7
T (mm)90.4
Z (mm)139.7
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity37090
Co (lb)Static load capacity46090
Mass
Attribute nameAttribute value
Weight(lbs)16
Mounting Information
Attribute nameAttribute value
Dismount Thread7/16-14 UNC
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1700
Max RPM-PTFE SealLimiting speed2360
Max RPM-Metal Labyrinth SealLimiting speed2360
