High Temperature Type-E Mounted Spherical Roller Bearings
>

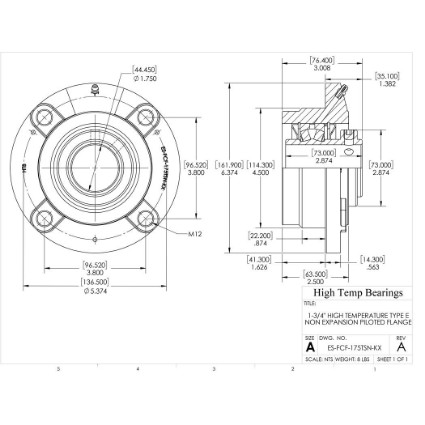

1-3/4" High Temperature Type E Non Expansion Piloted Flange Heavy Duty Bearing
Print Page
High Temperature Type E Piloted Flange: ES-FCF-175TSN-KX
High Temperature Type E Piloted Flange: ES-FCF-175TSN-KX
High Temperature Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$573.37
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
1-3/4"
Dismount Thread
5/16-18 UNC
A (mm)
161.9
B (mm)
63.5
C (mm)
14.3
D (mm)
73
Bolt
M12
G (mm)
41.1
H (mm)
22.2
K (mm)
41.3
L (mm)
73
M (mm)
96.5
Z (mm)
114.3
Co (lb)
24730
Weight(lbs)
8
Code
105623
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
44.45
E (mm)
136.5
T (mm)
82.4
C (lb)
20230
Max RPM-Triple Lip Seal
2225
Max RPM-PTFE Seal
3180
Max RPM-Metal Labyrinth Seal
3180
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
