Heavy Duty Type E Piloted Flange: ES-FCF-175RSE

Heavy Duty Type E Piloted Flange: ES-FCF-175RSE

Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$527.40
EA

checkbox icon This item typically ship in 1-4 weeks.

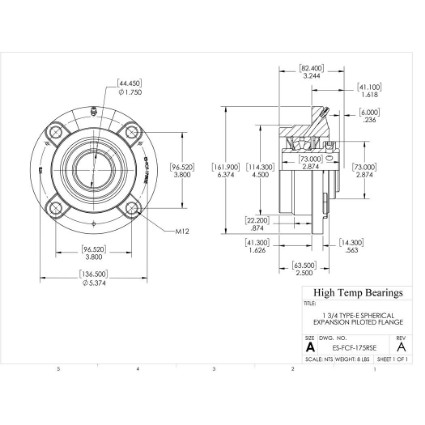

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-3/4"
Dismount Thread5/16-18 UNC
A (mm)161.9
B (mm)63.5
C (mm)14.3
D (mm)73
BoltM12
G (mm)41.1
H (mm)22.2
K (mm)41.3
L (mm)73
M (mm)96.5
Z (mm)114.3
Co (lb)24730
Weight(lbs)8
Code105192
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)44.45
E (mm)136.5
T (mm)82.4
X (mm)6
C (lb)20230
Max RPM-Triple Lip Seal2225
Max RPM-PTFE Seal3180
Max RPM-Metal Labyrinth Seal3180
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
