Heavy Duty Type E Piloted Flange: ES-FCF-169RSE

Heavy Duty Type E Piloted Flange: ES-FCF-169RSE

Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$322.93
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105190
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-11/16"

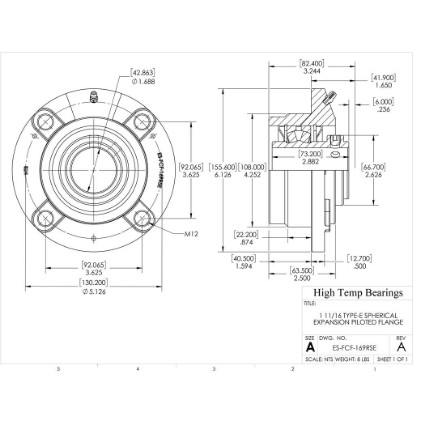

Dimensions
Attribute nameAttribute value
Bore (mm)42.8625
A (mm)155.6
B (mm)63.5
C (mm)12.7
D (mm)66.7
E (mm)130.2
G (mm)41.9
H (mm)22.2
K (mm)40.5
L (mm)73.2
M (mm)92
T (mm)82.4
X (mm)6
Z (mm)108
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17980
Co (lb)Static load capacity21360
Mass
Attribute nameAttribute value
Weight(lbs)8
Mounting Information
Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM12
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2425
Max RPM-PTFE SealLimiting speed3360
Max RPM-Metal Labyrinth SealLimiting speed3360
