High Temperature Type E Piloted Flange: ES-FCF-150TSN-KX

High Temperature Type E Piloted Flange: ES-FCF-150TSN-KX

High Temperature Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$529.85
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size1-1/2"
Dismount Thread5/16-18 UNC

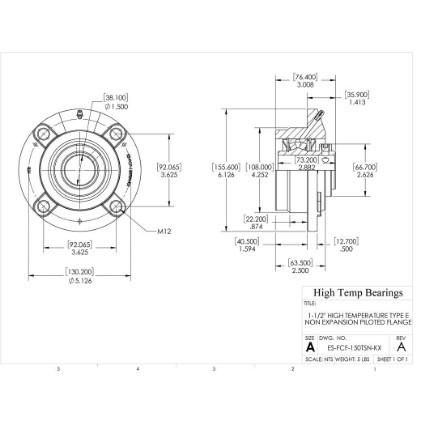

A (mm)155.6
B (mm)63.5
C (mm)12.7
D (mm)66.7
BoltM12
G (mm)41.9
H (mm)22.2
K (mm)40.5
L (mm)73.2
M (mm)92
Z (mm)108
Co (lb)21360
Weight(lbs)5
Code105576
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)38.1
E (mm)130.2
T (mm)82.4
C (lb)17980
Max RPM-Triple Lip Seal2425
Max RPM-PTFE Seal3360
Max RPM-Metal Labyrinth Seal3360
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
