High Temperature Type E Piloted Flange: ES-FCF-144TSN-KX

High Temperature Type E Piloted Flange: ES-FCF-144TSN-KX

High Temperature Type E Non Expansion Piloted Flange Mounted Spherical Roller Bearing
$468.93
EA

checkbox icon This item typically ship in 1-4 weeks.

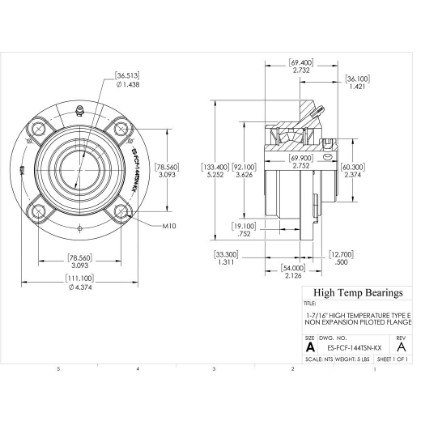

CAD
Specifications:
Attribute nameAttribute value
ConstructionPiloted Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size1-7/16"
Dismount Thread5/16-18 UNC
A (mm)133.4
B (mm)54
C (mm)12.7
D (mm)60.3
BoltM10
G (mm)40.1
H (mm)19.1
K (mm)33.3
L (mm)69.9
M (mm)78.6
Z (mm)92.1
Co (lb)20230
Weight(lbs)5
Code105542
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)36.5125
E (mm)111.1
T (mm)73.4
C (lb)17540
Max RPM-Triple Lip Seal2750
Max RPM-PTFE Seal3600
Max RPM-Metal Labyrinth Seal3600
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
