Heavy Duty Type E Piloted Flange: ES-FCF-144RSE

Heavy Duty Type E Piloted Flange: ES-FCF-144RSE

Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$284.20
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105184
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
ConstructionPiloted Flange
TypeExpansion
CollarSingle Locking Collar
Shaft Size1-7/16"

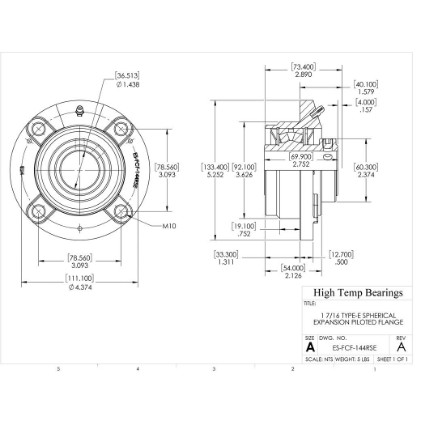

Dimensions
Attribute nameAttribute value
Bore (mm)36.5125
A (mm)133.4
B (mm)54
C (mm)12.7
D (mm)60.3
E (mm)111.1
G (mm)40.1
H (mm)19.1
K (mm)33.3
L (mm)69.9
M (mm)78.6
T (mm)73.4
X (mm)4
Z (mm)92.1
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity17540
Co (lb)Static load capacity20230
Mass
Attribute nameAttribute value
Weight(lbs)5
Mounting Information
Attribute nameAttribute value
Dismount Thread5/16-18 UNC
BoltRecommended Foot BoltM10
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed2750
Max RPM-PTFE SealLimiting speed3600
Max RPM-Metal Labyrinth SealLimiting speed3600
