High Temperature Type-E Mounted Spherical Roller Bearings
>
100mm High Temperature Type E Expansion Piloted Flange Heavy Duty Bearing
Print Page
High Temperature Type E Piloted Flange: ES-FCF-100MMTSE-KX
High Temperature Type E Piloted Flange: ES-FCF-100MMTSE-KX
High Temperature Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$1,921.63
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS1
Manual
Specifications:
Description
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105879
Shaft Size
100mm
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
Type-E Spherical-KX
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar

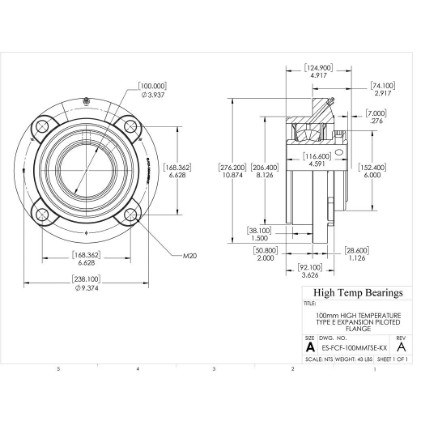

Dimensions
Attribute name
Attribute value
Bore (mm)
100
A (mm)
276.2
B (mm)
92.1
C (mm)
28.6
D (mm)
152.4
E (mm)
238.1
G (mm)
74.1
H (mm)
38.1
K (mm)
50.8
L (mm)
116.6
M (mm)
168.4
T (mm)
124.9
X (mm)
7
Z (mm)
206.4
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
84300
Co (lb)
Static load capacity
112400
Mass
Attribute name
Attribute value
Weight(lbs)
43
Mounting Information
Attribute name
Attribute value
Dismount Thread
1/2-13 UNC
Bolt
Recommended Foot Bolt
M20
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1100
Max RPM-PTFE Seal
Limiting speed
1350
Max RPM-Metal Labyrinth Seal
Limiting speed
1350
