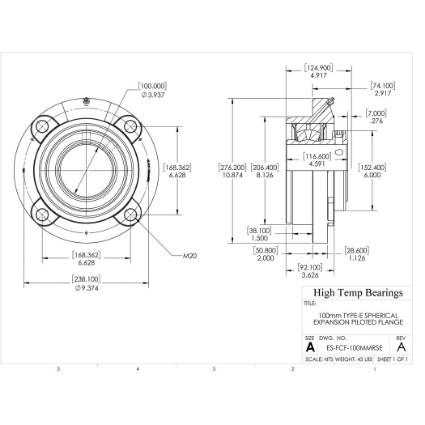

100mm Type E Expansion Piloted Flange Heavy Duty Bearing
Print Page
Heavy Duty Type E Piloted Flange: ES-FCF-100MMRSE
Heavy Duty Type E Piloted Flange: ES-FCF-100MMRSE
Type E Expansion Piloted Flange Mounted Spherical Roller Bearing
$2,057.77
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
Piloted Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
100mm
Dismount Thread
1/2-13 UNC
A (mm)
276.2
B (mm)
92.1
C (mm)
28.6
D (mm)
152.4
Bolt
M20
G (mm)
74.1
H (mm)
38.1
K (mm)
50.8
L (mm)
116.6
M (mm)
168.4
Z (mm)
206.4
Co (lb)
112400
Weight(lbs)
43
Code
105236
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
100
E (mm)
238.1
T (mm)
124.9
X (mm)
7
C (lb)
84300
Max RPM-Triple Lip Seal
1100
Max RPM-PTFE Seal
1350
Max RPM-Metal Labyrinth Seal
1350
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
