Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-80MMRSE

Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-80MMRSE

Type-E Expansion 4-Bolt Pillow Block Mounted Spherical Roller Bearing
$1,279.63
EA

checkbox icon This item typically ship in 1-4 weeks.

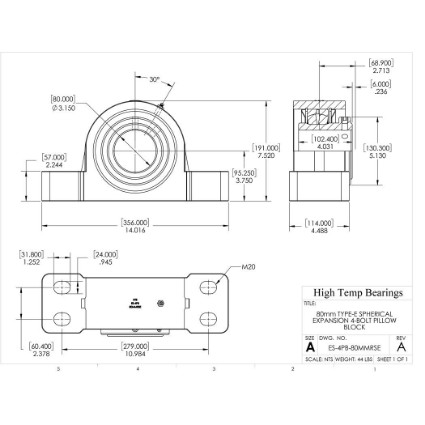

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeExpansion
CollarSingle Locking Collar
Shaft Size80mm
A (mm)356
B (mm)114
D (mm)130.3
E (mm)60.4
BoltM20
G (mm)31.8
H (mm)95.25
J (mm)191
K (mm)24
L (mm)102.4
M Min (mm)271
M Max (mm)287
Co (lb)83180
Weight(lbs)44
Code105084
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)80
C (mm)57
L1 (mm)131.8
T (mm)68.9
X (mm)6
C (lb)62950
Max RPM-Triple Lip Seal1250
Max RPM-PTFE Seal1600
Max RPM-Metal Labyrinth Seal1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
