Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-75MMRSN

Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-75MMRSN

Type-E Non-Expansion 4-Bolt Pillow Block Mounted Spherical Roller Bearing
$918.02
EA

checkbox icon This item ship within 24 hours.

CAD

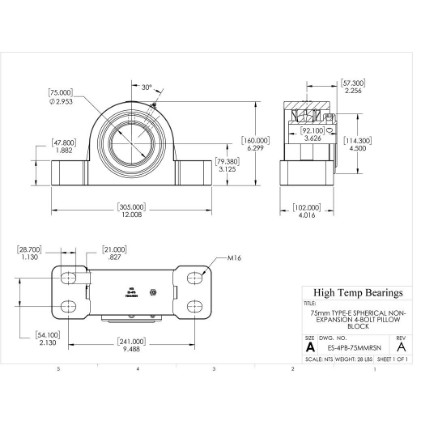

Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size75mm
A (mm)305
B (mm)102
D (mm)114.3
E (mm)54.1
BoltM16
G (mm)28.7
H (mm)79.38
J (mm)160
K (mm)21
L (mm)92.1
M Min (mm)233
M Max (mm)249
Co (lb)52830
Weight(lbs)28
Code105081
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)75
C (mm)47.8
L1 (mm)120.65
T (mm)63.3
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
