Heavy Duty Double Collar Type-E 4-Bolt Pillow Block: ES-4PB-494RDN

Heavy Duty Double Collar Type-E 4-Bolt Pillow Block: ES-4PB-494RDN

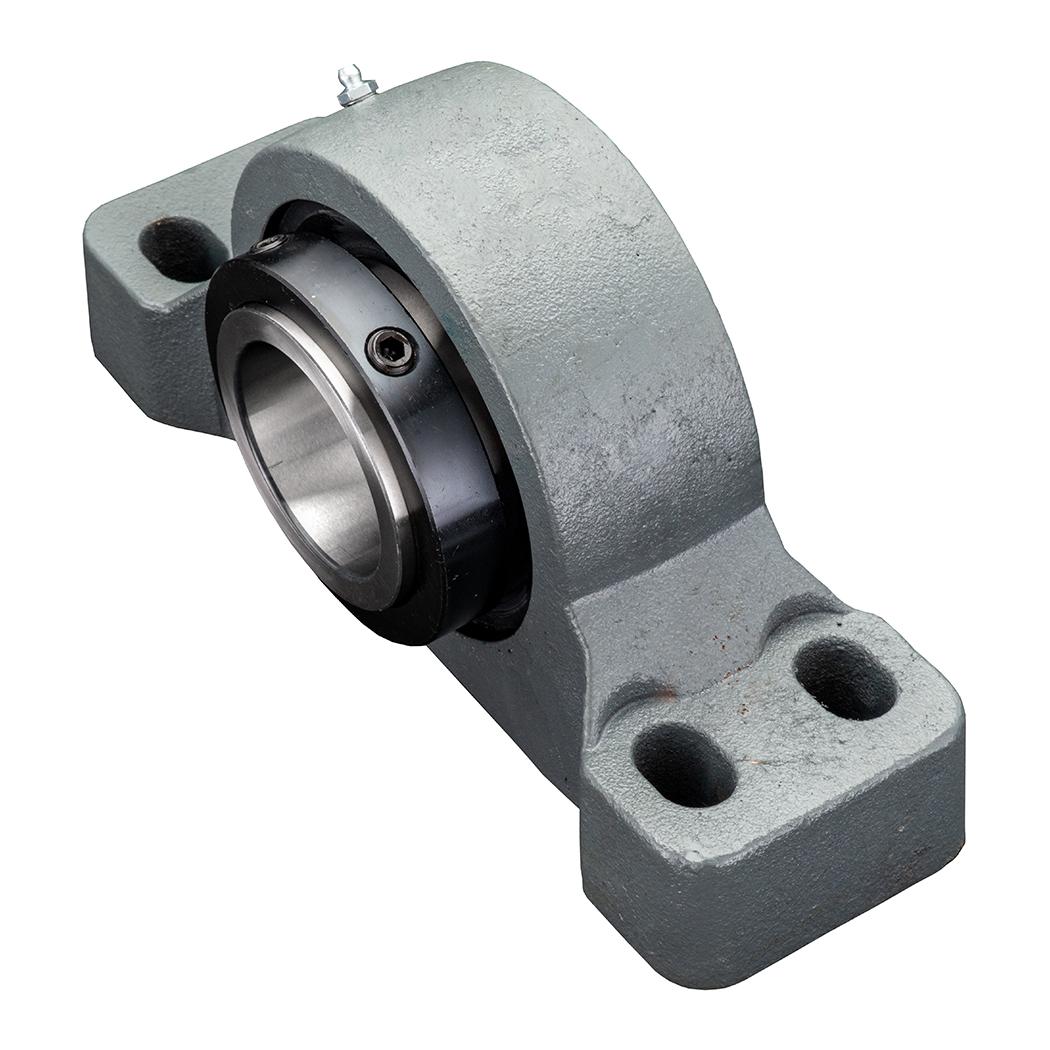

Type-E Double Collar Non-Expansion 4-Bolt Pillow Block Mounted Spherical Roller Bearing
$4,481.31
EA

checkbox icon This item ship within 24 hours.

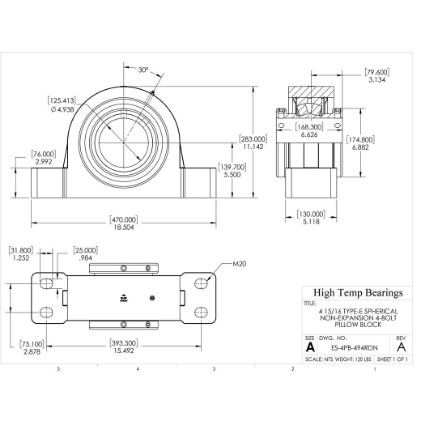

CAD
Specifications:
Attribute nameAttribute value
Construction4-Bolt Pillow Block
TypeNon-Expansion
CollarDouble Locking Collar
Shaft Size4-15/16"
A (mm)470
B (mm)130
D (mm)174.8
E (mm)73.1
BoltM20
G (mm)31.8
H (mm)139.7
J (mm)283
K (mm)25
L1 (mm)168.3
M Min (mm)387
M Max (mm)400
Co (lb)185470
Weight(lbs)120
Code105115
PackageQTY1
UOMEA
SeriesType-E Spherical
Bore (mm)125.4125
C (mm)76
T (mm)88.6
C (lb)128140
Max RPM-Triple Lip Seal900
Max RPM-PTFE Seal1020
Max RPM-Metal Labyrinth Seal1020
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
