Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>

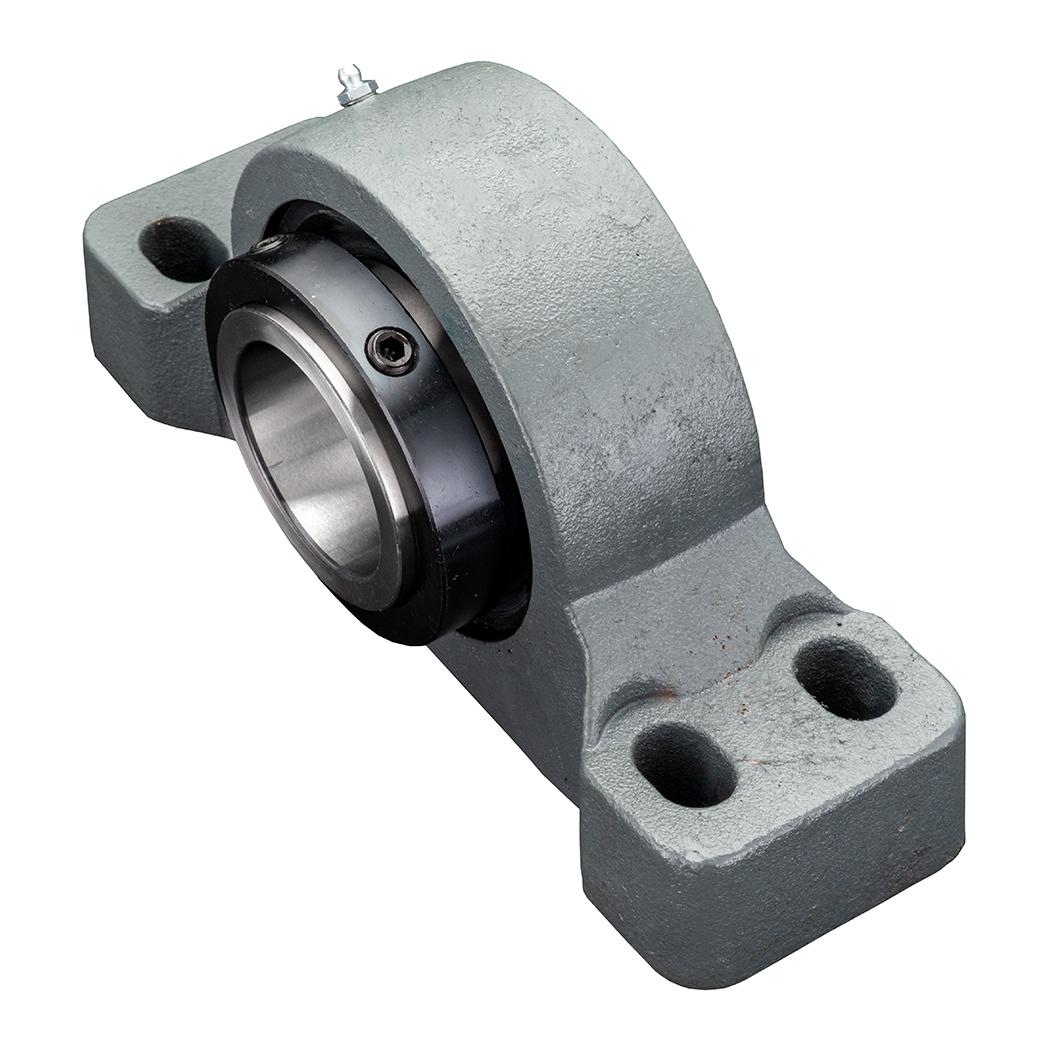

4-1/2" Type E Double Locking Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty Double Collar Type-E 4-Bolt Pillow Block: ES-4PB-450RDE
Heavy Duty Double Collar Type-E 4-Bolt Pillow Block: ES-4PB-450RDE
Type-E Double Collar Expansion 4-Bolt Pillow Block Mounted Spherical Roller Bearing
$2,818.30
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Expansion
Collar
Double Locking Collar
Shaft Size
4-1/2"
A (mm)
422
B (mm)
118
D (mm)
155.6
E (mm)
63.5
Bolt
M20
G (mm)
30.2
H (mm)
120.65
J (mm)
246
K (mm)
24
L1 (mm)
155.5
M Min (mm)
336
M Max (mm)
349
Co (lb)
134890
Weight(lbs)
80
Code
105110
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
114.3
C (mm)
70
T (mm)
82.3
X (mm)
9
C (lb)
94420
Max RPM-Triple Lip Seal
1040
Max RPM-PTFE Seal
1200
Max RPM-Metal Labyrinth Seal
1200
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
