Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>
3-15/16" Type E Non Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page
Heavy Duty Type E 4 Bolt Pillow Block: ES-4PB-394RSN
Heavy Duty Type E 4 Bolt Pillow Block: ES-4PB-394RSN
Type E Non Expansion 4 Bolt Pillow Block Mounted Spherical Roller Bearing
$1,218.79
Qty:
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
Manual
TDS1
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute name
Attribute value
Daily Shipping Deal
BIGBEARING
Product Information
Attribute name
Attribute value
Code
105103
PackageQTY
Package Quantity
1
UOM
Unit of Measure
EA
Series
Type-E Spherical
Construction
4-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
3-15/16"

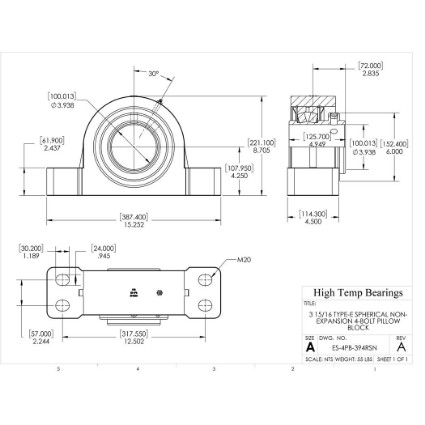

Dimensions
Attribute name
Attribute value
Bore (mm)
100.0125
A (mm)
387.4
B (mm)
114.3
C (mm)
61.9
D (mm)
152.4
E (mm)
57
G (mm)
30.2
H (mm)
107.94999999999999
J (mm)
221.1
K (mm)
24
L (mm)
125.7
L1 (mm)
150.8
M Min (mm)
311.2
M Max (mm)
323.9
T (mm)
79
Calculation Data
Attribute name
Attribute value
C (lb)
Dynamic load capacity
84300
Co (lb)
Static load capacity
112400
Mass
Attribute name
Attribute value
Weight(lbs)
55
Mounting Information
Attribute name
Attribute value
Bolt
Recommended Foot Bolt
M20
Safe Loads
Attribute name
Attribute value
Max RPM-Triple Lip Seal
Limiting speed
1100
Max RPM-PTFE Seal
Limiting speed
1350
Max RPM-Metal Labyrinth Seal
Limiting speed
1350
