Type-E Mounted Spherical Roller Bearings
>
3-7/16" Type E Non Expansion 4 Bolt Pillow Block Heavy Duty Bearing
Print Page

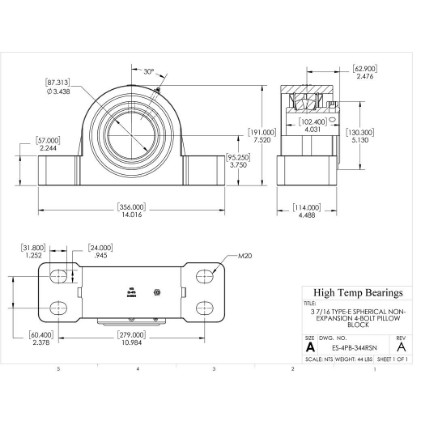

Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-344RSN
Heavy Duty Type-E 4-Bolt Pillow Block: ES-4PB-344RSN
Type-E Non-Expansion 4-Bolt Pillow Block Mounted Spherical Roller Bearing
$1,274.45
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Pillow Block
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
3-7/16"
A (mm)
356
B (mm)
114
D (mm)
130.3
E (mm)
60.4
Bolt
M20
G (mm)
31.8
H (mm)
95.25
J (mm)
191
K (mm)
24
L (mm)
102.4
M Min (mm)
271
M Max (mm)
287
Co (lb)
83180
Weight(lbs)
44
Code
105093
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
87.3125
C (mm)
57
L1 (mm)
131.8
T (mm)
68.9
C (lb)
62950
Max RPM-Triple Lip Seal
1250
Max RPM-PTFE Seal
1600
Max RPM-Metal Labyrinth Seal
1600
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
