Heavy Duty Type E 4 Bolt Flange: ES-4BF-85MMRSN

Heavy Duty Type E 4 Bolt Flange: ES-4BF-85MMRSN

Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$940.97
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:
Description
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Non-expansion units prevent axial movement. They are typically placed closest to the drive. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
Attribute nameAttribute value
Daily Shipping DealFree shipping on $1999 or more in Type-E and S2000 Bearings
Product Information
Attribute nameAttribute value
Code105167
PackageQTYPackage Quantity1
UOMUnit of MeasureEA
SeriesType-E Spherical
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size85mm

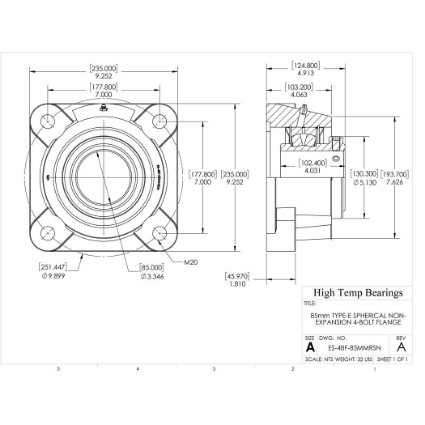

Dimensions
Attribute nameAttribute value
Bore (mm)85
A (mm)235
B (mm)103.2
C (mm)130.8
D (mm)130.3
E (mm)177.8
H (mm)45.97
J (mm)193.7
K (mm)251.5
L (mm)102.4
Calculation Data
Attribute nameAttribute value
C (lb)Dynamic load capacity62950
Co (lb)Static load capacity83180
Mass
Attribute nameAttribute value
Weight(lbs)32
Mounting Information
Attribute nameAttribute value
BoltRecommended Foot BoltM20
Safe Loads
Attribute nameAttribute value
Max RPM-Triple Lip SealLimiting speed1250
Max RPM-PTFE SealLimiting speed1600
Max RPM-Metal Labyrinth SealLimiting speed1600
