High Temperature Type E 4 Bolt Flange: ES-4BF-70MMTSN-KX

High Temperature Type E 4 Bolt Flange: ES-4BF-70MMTSN-KX

High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,084.70
EA

checkbox icon This item typically ship in 1-4 weeks.

CAD
Specifications:

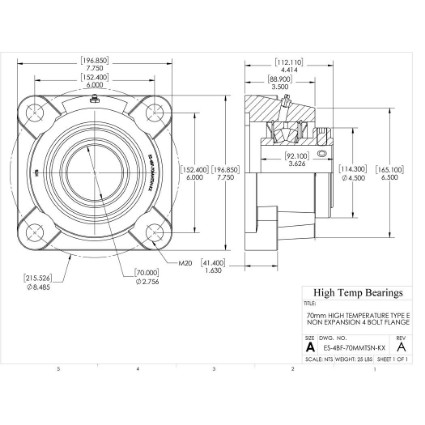

Attribute nameAttribute value
Construction4-Bolt Flange
TypeNon-Expansion
CollarSingle Locking Collar
Shaft Size70mm
A (mm)196.85
B (mm)88.9
C (mm)118.11
D (mm)114.3
E (mm)152.4
BoltM20
H (mm)41.4
J (mm)165.1
K (mm)215.65
L (mm)92.1
Co (lb)52830
Weight(lbs)25
Code105751
PackageQTY1
UOMEA
SeriesType-E Spherical-KX
Bore (mm)70
C (lb)41590
Max RPM-Triple Lip Seal1500
Max RPM-PTFE Seal2150
Max RPM-Metal Labyrinth Seal2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
