Home
>
Heavy Duty Mounted Bearings
>
High Temperature Type-E Mounted Spherical Roller Bearings
>

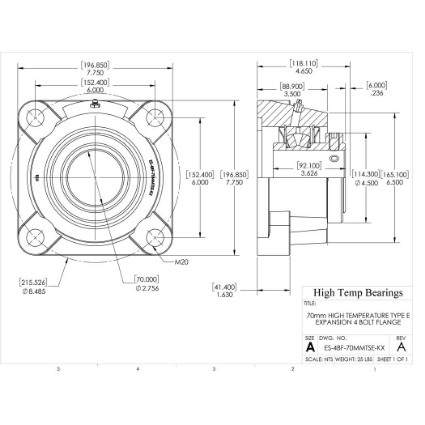

70mm High Temperature Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
High Temperature Type E 4 Bolt Flange: ES-4BF-70MMTSE-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-70MMTSE-KX
High Temperature Type E Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$1,084.70
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
70mm
A (mm)
196.85
B (mm)
88.9
C (mm)
118.11
D (mm)
114.3
E (mm)
152.4
Bolt
M20
H (mm)
41.4
J (mm)
165.1
K (mm)
215.65
L (mm)
92.1
Co (lb)
52830
Weight(lbs)
25
Code
105750
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
70
X (mm)
6
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Expansion bearings can accommodate moderate axial shaft growth from thermal expansion by allowing axial movement between the housing and bearing OD. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
