Home
>
Heavy Duty Mounted Bearings
>
Type-E Mounted Spherical Roller Bearings
>

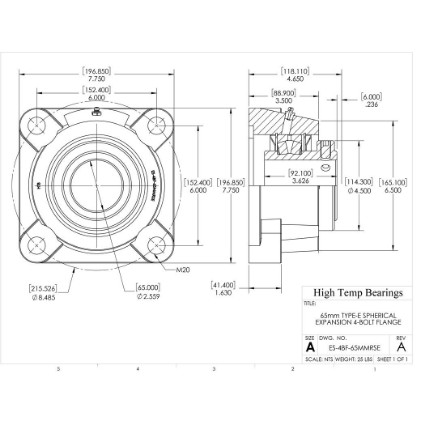

65mm Type E Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
Heavy Duty Type-E 4-Bolt Flange: ES-4BF-65MMRSE
Heavy Duty Type-E 4-Bolt Flange: ES-4BF-65MMRSE
Type-E Expansion 4-Bolt Flange Mounted Spherical Roller Bearing
$661.06
Qty:
EA
checkbox icon
This item ship within 24 hours.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Expansion
Collar
Single Locking Collar
Shaft Size
65mm
A (mm)
196.85
B (mm)
88.9
C (mm)
118.11
D (mm)
114.3
E (mm)
152.4
Bolt
M20
H (mm)
41.4
J (mm)
165.1
K (mm)
215.65
L (mm)
92.1
Co (lb)
52830
Weight(lbs)
25
Code
105150
PackageQTY
1
UOM
EA
Series
Type-E Spherical
Bore (mm)
65
X (mm)
6
C (lb)
41590
Max RPM-Triple Lip Seal
1500
Max RPM-PTFE Seal
2150
Max RPM-Metal Labyrinth Seal
2150
A self-aligning spherical roller bearing mounted in ductile iron housing with independent set screw shaft locking collars makes this one of the most rugged and easy-to-install mounted bearings available. Expansion units allow for axial shaft growth. Request a quote for options such as end covers, special seals, and custom lubrication for improved performance and increased range of service temperatures.
