Home
>
Heavy Duty Mounted Bearings
>
High Temperature Type-E Mounted Spherical Roller Bearings
>

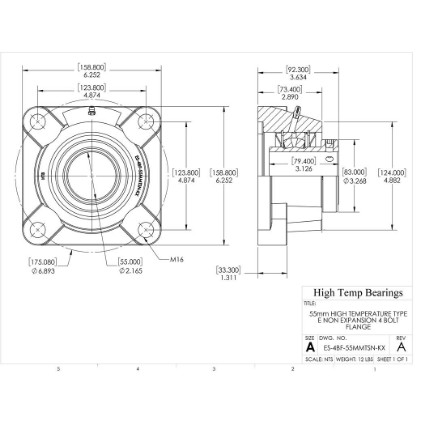

55mm High Temperature Type E Non Expansion 4 Bolt Flange Heavy Duty Bearing
Print Page
High Temperature Type E 4 Bolt Flange: ES-4BF-55MMTSN-KX
High Temperature Type E 4 Bolt Flange: ES-4BF-55MMTSN-KX
High Temperature Type E Non Expansion 4 Bolt Flange Mounted Spherical Roller Bearing
$631.03
Qty:
EA
checkbox icon
This item typically ship in 1-4 weeks.
CAD
PDF
DWG
STP
TDS
MANUAL
Specifications:
metric
Attribute name
Attribute value
Construction
4-Bolt Flange
Type
Non-Expansion
Collar
Single Locking Collar
Shaft Size
55mm
A (mm)
158.8
B (mm)
73.4
C (mm)
98.3
D (mm)
83
E (mm)
123.8
Bolt
M16
H (mm)
33.3
J (mm)
124
K (mm)
175
L (mm)
79.4
Co (lb)
28100
Weight(lbs)
12
Code
105645
PackageQTY
1
UOM
EA
Series
Type-E Spherical-KX
Bore (mm)
55
C (lb)
23600
Max RPM-Triple Lip Seal
2000
Max RPM-PTFE Seal
2800
Max RPM-Metal Labyrinth Seal
2800
Can handle heavy loads, speed, vibration, impact, and dynamically self-align at high temperature in a rugged and easy-to-install mounted bearing assembly. All bearings are equipped with PTFE labyrinth seals and are factory lubricated with our HTB550 PFPE base oil, NLGI No. 2, PTFE thickened grease. Non-Expansion bearings resist axial shaft movement. KX series bearings are designed to significantly outlast all other equivalently sized roller bearings in high-temperature service above 180°F up to their rated temperature. This is achieved with superior metallurgy, elastomers and lubrication selected explicitly for service in the specified temperature range.
